INA ZKLN4075-2RS-XL Thrust ball bearings
Also known as : ZKLN4075-2RS-XL
- Inside Diameter: 40 mm
- Outside Diameter: 75 mm
- Width: 34 mm
- Basic dynamic load rating: 47.5 kN
- Basic static load rating: 101 kN
INA ZKLN4075-2RS-XL
INA ZKLN4075-2RS-XL details

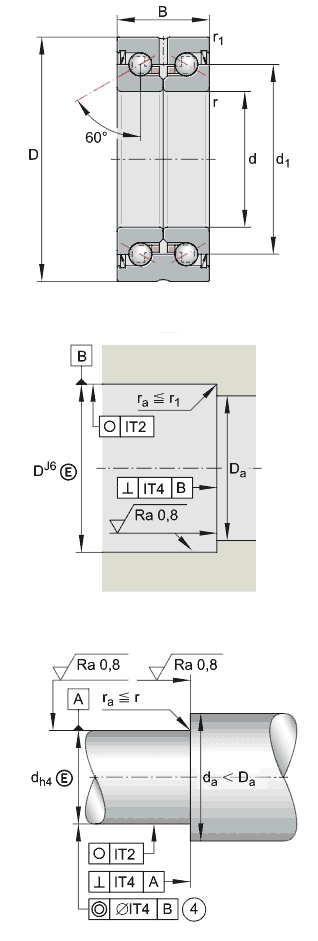

| Number | ZKLN4075-2RS-XL | |
|---|---|---|
| Type |
Axial angular contact ball bearings double direction, lip seals on both sides |
|
| d | 40mm | Tolerance: 0/-0,005 |
| D | 75mm | Tolerance: 0/-0,01 |
| B | 34mm | Tolerance: 0/-0,25 |
| 60° | Contact angle | |
| Da max | 67mm | |
| d1 | 58mm | |
| da min | 50mm | |
| r1 min | 0,6mm | |
| rmin | 0,3mm | |
| m | 0,61kg | ≈ Mass |
| Ca | 47500N | Basic dynamic load rating, axial |
| C0a | 101000N | Basic static load rating, axial |
| Cua | 6100N | Fatigue limit load, axial |
| nG Fett | 40001/min | Limiting speed for grease lubrication |
| nϑ | 18001/min | Thermally safe operating speed |
| MRL | 0,7Nm | Bearing frictional torque |
| caL | 1000N/µm | Axial rigidity |
| ckL | 550Nm/mrad | Tilting rigidity |
| Mm | 2,26kg * cm^2 | Mass moment of inertia for rotating inner ring |
| 2,5µm |
Axial runout The axial runout data for screw drive bearing arrangements are based on the rotating inner ring. |
|
| ZM40 |
Recommended INA precision locknuts with radial clamping The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately. |
|
| AM40 |
Recommended INA precision locknuts with axial clamping The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately. |
|
| MA | 55Nm |
Tightening torque Only valid in conjunction with INA precision locknuts. Observe the guidelines on locating/locating bearing arrangements. |
| 13412N |
Requisite locknut force, axial The requisite axial locknut force must be observed when using other locknuts. |
