INA ZKLF2575-2RS-XL Thrust ball bearings
Also known as : ZKLF2575-2RS-XL
- Inside Diameter: 25 mm
- Outside Diameter: 75 mm
- Width: 28 mm
- Basic dynamic load rating: 30.5 kN
- Basic static load rating: 55 kN
INA ZKLF2575-2RS-XL
INA ZKLF2575-2RS-XL details

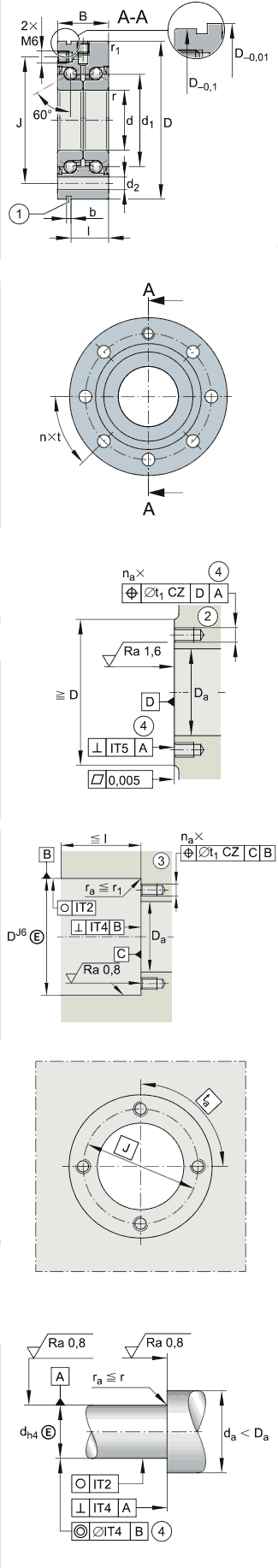

| Number | ZKLF2575-2RS-XL | |
|---|---|---|
| Type |
Axial angular contact ball bearings double direction, for screw mounting, lip seals on both sides |
|
| d | 25mm | Tolerance: 0/-0,005 |
| D | 75mm | Tolerance: 0/-0,01 |
| B | 28mm | Tolerance: 0/-0,25 |
| M6 | Threaded connector for lubrication | |
| 60° | Contact angle | |
| M6 |
Fixing screws to DIN EN ISO 4762 10.9 Screws not included in scope of delivery. Tightening torque according to manufacturer’s data. |
|
| b | 3mm | |
| Da max | 48mm | |
| d1 | 40,5mm | |
| d2 | 6,8mm | |
| da min | 32mm | |
| I | 19mm | |
| J | 58mm | |
| naxta | 4 x 90° |
Fixing screws to DIN EN ISO 4762 10.9 Screws not included in scope of delivery. Tightening torque according to manufacturer’s data. Number of holes in adjacent construction corresponds to n a. |
| n x t | 8 x 45° | Pitch |
| r1 min | 0,6mm | |
| rmin | 0,3mm | |
| t1 | 0,1mm | |
| m | 0,72kg | ≈ Mass |
| Ca | 30500N | Basic dynamic load rating, axial |
| C0a | 55000N | Basic static load rating, axial |
| Cua | 3350N | Fatigue limit load, axial |
| nG Fett | 57001/min | Limiting speed for grease lubrication |
| nϑ | 26001/min | Thermally safe operating speed |
| MRL | 0,4Nm | Bearing frictional torque |
| caL | 750N/µm | Axial rigidity |
| ckL | 200Nm/mrad | Tilting rigidity |
| Mm | 0,486kg * cm^2 | Mass moment of inertia for rotating inner ring |
| 2µm |
Axial runout The axial runout data for screw drive bearing arrangements are based on the rotating inner ring. |
|
| ZM25 |
Recommended INA precision locknuts with radial clamping The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately. |
|
| AM25 |
Recommended INA precision locknuts with axial clamping The recommended INA precision locknuts are not included in the scope of delivery and must be ordered separately. |
|
| MA | 25Nm |
Tightening torque Only valid in conjunction with INA precision locknuts. Observe the guidelines on locating/locating bearing arrangements. |
| 9123N |
Requisite locknut force, axial The requisite axial locknut force must be observed when using other locknuts. |
