SKF 53210+U210 Thrust ball bearings
Also known as : 53210+U210, 53210XU
- Inside Diameter: 50 mm
- Outside Diameter: 78 mm
- Width: 23.5 mm
- Basic dynamic load rating: 49.4 kN
- Basic static load rating: 116 kN
SKF 53210+U210

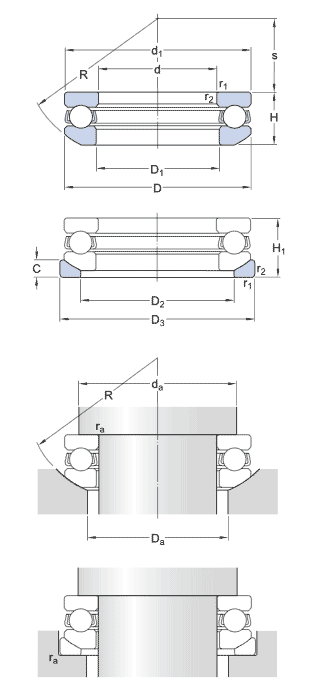

SKF 53210+U210 details
| model | 53210+U210 |
|---|---|
| d | 50 mm |
| D | 78 mm |
| H | 23.5 mm |
| H1 | 26 mm |
| d1 ≈ | 78 mm |
| D1 ≈ | 52 mm |
| D2 | 62 mm |
| D3 | 82 mm |
| C | 7.5 mm |
| R | 64 mm |
| s | 32.5 mm |
| r1,2 min. | 1 mm |
| da min. | 67 mm |
| Da max. | 62 mm |
| ra max. | 1 mm |
| Calculation data | |
| C | 49.4 kN, Basic dynamic load rating |
| C0 | 116 kN, Basic static load rating |
| Pu | 4.3 kN, Fatigue load limit |
| Reference speed | 3200 r/min |
| Limiting speed | 4500 r/min |
| A | 0.069, Minimum load factor |
| Mass | 0.47 kg |
