INA GIR10-DO Rod end joint
Also known as : GIR10-DO
- Inside Diameter: 10 mm
- Outside Diameter: 29 mm
- Width: 57.5 mm
- Basic dynamic load rating: 8.16 kN
- Basic static load rating: 22 kN
INA GIR10-DO
INA GIR10-DO details

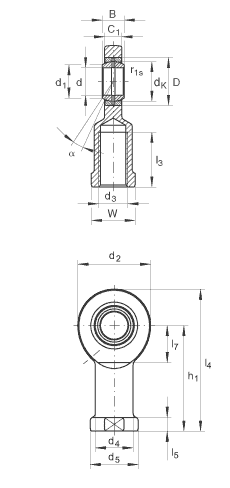

| Number | GIR10-DO | |
|---|---|---|
| Type | Rod ends with internal thread, requiring maintenance, to DIN ISO 12 240-4, right hand thread | |
| d | 10 mm | Tolerance: 0/-0,008 |
| d2 | 29 mm | |
| l4 | 57,5 mm | |
| B | 9 mm | Tolerance: 0/-0,12 |
| C1 | 7 mm | |
| D | 19 mm | |
| d1 | 13,2 mm | |
| d3 | M10 | |
| d4 | 15 mm | |
| d5 | 19 mm | |
| dK | 16 mm | |
| h1 | 43 mm | |
| l3 | 20 mm | |
| l5 | 6,5 mm | |
| l7 | 15 mm | |
| r1s min | 0,3 mm | Chamfer dimension |
| W | 17 mm | |
| α | 12 ° | |
| m | 0,061 kg | Mass |
| Cr | 8160 N | Basic dynamic load rating, radial |
| C0r | 22000 N | Basic static load rating, radial Basic load rating of housing |
