INA GIL30-DO Rod end joint
Also known as : GIL30-DO
- Inside Diameter: 30 mm
- Outside Diameter: 73 mm
- Width: 146.5 mm
- Basic dynamic load rating: 62.3 kN
- Basic static load rating: 119 kN
INA GIL30-DO
INA GIL30-DO details

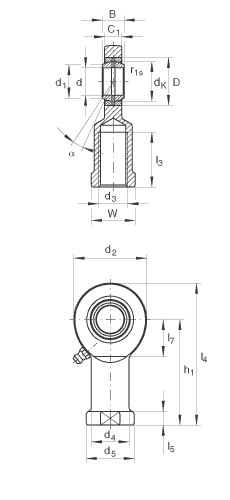

| Number | GIL30-DO | |
|---|---|---|
| Type | Rod ends with internal thread, requiring maintenance, to DIN ISO 12 240-4, left hand thread | |
| d | 30 mm | Tolerance: 0/-0,01 |
| d2 | 73 mm | |
| l4 | 146,5 mm | |
| B | 22 mm | Tolerance: 0/-0,12 |
| C1 | 19 mm | |
| D | 47 mm | |
| d1 | 34,2 mm | |
| d3 | M30x2 | |
| d4 | 40 mm | |
| d5 | 50 mm | |
| dK | 40,7 mm | |
| h1 | 110 mm | |
| l3 | 56 mm | |
| l5 | 15 mm | |
| l7 | 37 mm | |
| r1s min | 0,6 mm | Chamfer dimension |
| W | 41 mm | |
| α | 6 ° | |
| m | 0,93 kg | Mass |
| Cr | 62300 N | Basic dynamic load rating, radial |
| C0r | 119000 N | Basic static load rating, radial Basic load rating of housing |
