IKO PHS8EC Rod end joint
Also known as : PHS8EC
- Inside Diameter: 8 mm
- Outside Diameter: 22 mm
- Width: 47 mm
- Basic dynamic load rating: 14 kN
- Basic static load rating: 7.76 kN
IKO PHS8EC

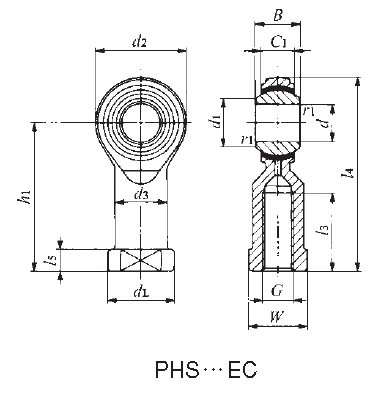

IKO PHS8EC details
| Identification number | PHS8EC |
|---|---|
| Type | Maintenance-free type PILLOBALL Rod ends |
| Mass | 43 g |
| d | 8 mm |
| Thread G | M8X1.25 |
| d2 | 22 mm |
| C1 | 9 mm |
| B | 12 mm |
| d1 | 10.4 mm |
| l4 | 47 mm |
| h1 | 36 mm |
| l3 | 16 mm |
| l5 | 5 mm |
| W | 14 mm |
| d3 | 12.5 mm |
| dL | 16 mm |
| r1s min | 0.2 mm |
| Ball dia. | 15.875 mm |
| Dynamic load capacity | 14 kN |
| Static load capacity | 14 kN |
