IKO PHSB2 Rod end joint
Also known as : PHSB2
- Inside Diameter: 3.175 mm
- Outside Diameter: 11.91 mm
- Width: 26.57 mm
- Basic dynamic load rating: 1.85 kN
- Basic static load rating: 5.84 kN
IKO PHSB2
IKO PHSB2 details

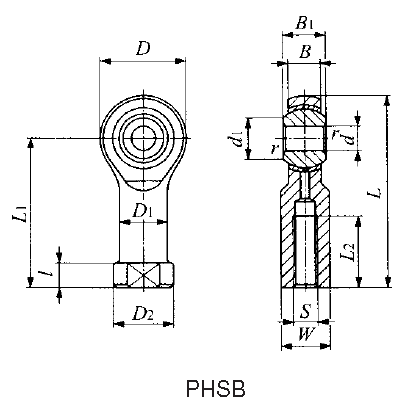

| Identification number | PHSB2 |
|---|---|
| Type | Inch series PILLOBALL Rod ends |
| Mass | 6.8 g |
| d | 3.175 mm |
| Thread S | -32UNC |
| D | 11.91 mm |
| B | 4.75 mm |
| B1 | 6.35 mm |
| d1 | 4.75 mm |
| L | 26.57 mm |
| l | 4.75 mm |
| L1 | 20.62 mm |
| L2 | 9.53 mm |
| W | 6.35 mm |
| D1 | 6.35 mm |
| D2 | 7.92 mm |
| rs min | 0.3 mm |
| Ball dia. | 7.938 mm |
| Dynamic load capacity | 1.85 kN |
| Static load capacity | 5.84 kN |
