IKO PHSA18 Rod end joint
Also known as : PHSA18
- Inside Diameter: 18 mm
- Outside Diameter: 45 mm
- Width: 93.5 mm
- Basic dynamic load rating: 28.8 kN
- Basic static load rating: 0 kN
IKO PHSA18

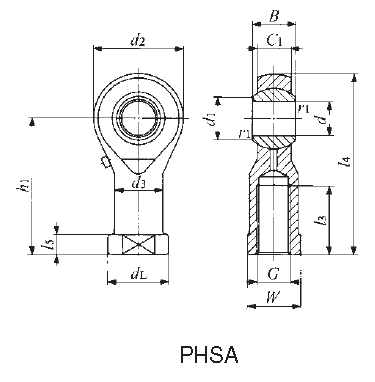

IKO PHSA18 details
| Identification number | PHSA18 |
|---|---|
| Type | Lubrication type PILLOBALL Rod ends |
| Mass | 290 g |
| d | 18 mm |
| Thread G | M18X1.5 |
| d2 | 45 mm |
| C1 | 16.5 mm |
| B | 23 mm |
| d1 | 21.9 mm |
| l4 | 93.5 mm |
| h1 | 71 mm |
| l3 | 40 mm |
| l5 | 10 mm |
| W | 27 mm |
| d3 | 25 mm |
| dL | 31 mm |
| r1s min | 0.3 mm |
| Ball dia. | 31.75 mm |
| Dynamic load capacity | 28.8 kN |
