IKO PHSB6 Rod end joint
Also known as : PHSB6
- Inside Diameter: 9.525 mm
- Outside Diameter: 25.4 mm
- Width: 53.98 mm
- Basic dynamic load rating: 9.23 kN
- Basic static load rating: 21.6 kN
IKO PHSB6

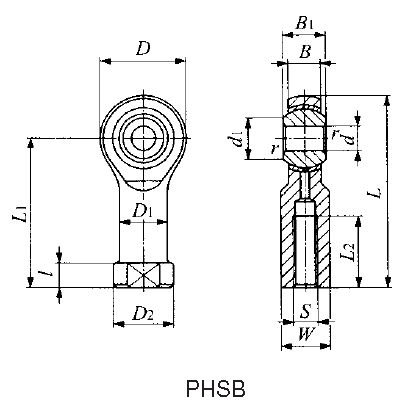

IKO PHSB6 details
| Identification number | PHSB6 |
|---|---|
| Type | Inch series PILLOBALL Rod ends |
| Mass | 59 g |
| d | 9.525 mm |
| Thread S | -24UNF |
| D | 25.4 mm |
| B | 10.31 mm |
| B1 | 12.7 mm |
| d1 | 13.13 mm |
| L | 53.98 mm |
| l | 6.35 mm |
| L1 | 41.28 mm |
| L2 | 23.8 mm |
| W | 14.27 mm |
| D1 | 14.27 mm |
| D2 | 17.45 mm |
| rs min | 0.5 mm |
| Ball dia. | 18.256 mm |
| Dynamic load capacity | 9.23 kN |
| Static load capacity | 21.6 kN |
