IKO PHS20 Rod end joint
Also known as : PHS20
- Inside Diameter: 20 mm
- Outside Diameter: 46 mm
- Width: 100 mm
- Basic dynamic load rating: 30.8 kN
- Basic static load rating: 35.5 kN
IKO PHS20

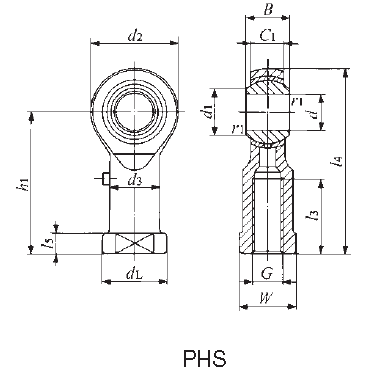

IKO PHS20 details
| Identification number | PHS20 |
|---|---|
| Type | Lubrication type PILLOBALLRod ends |
| Mass | 380 g |
| d | 20 mm |
| Thread G | M20X1.5 |
| d2 | 46 mm |
| C1 | 18 mm |
| B | 25 mm |
| d1 | 24.4 mm |
| l4 | 100 mm |
| h1 | 77 mm |
| l3 | 40 mm |
| l5 | 10 mm |
| W | 30 mm |
| d3 | 27.5 mm |
| dL | 34 mm |
| r1s min | 0.2 mm |
| Ball dia. | 34.925 mm |
| Dynamic load capacity | 30.8 kN |
| Static load capacity | 35.5 kN |
