SKF SIL10E Rod end joint
Also known as : SIL10E, GIL10-DO
- Inside Diameter: 10 mm
- Outside Diameter: 30 mm
- Width: 60 mm
- Basic dynamic load rating: 8.15 kN
- Basic static load rating: 19 kN
SKF SIL10E

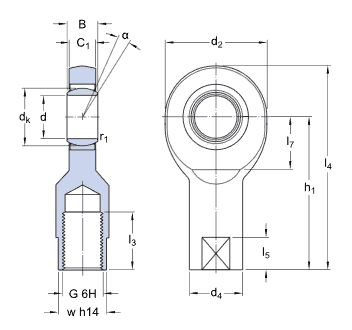

SKF SIL10E details
| number | SIL10E | |
|---|---|---|
| Type | Rod ends with a female thread | |
| d | 10 mm | |
| d2 max. | 30 mm | |
| B | 9 mm | |
| G 6H | M 10 | |
| C1 max. | 7.5 mm | |
| h1 | 43 mm | |
| α | 12 ° | |
| dk | 16 mm | |
| d4 ≈ | 16 mm | |
| l3 min. | 15 mm | |
| l4 max. | 60 mm | |
| l5 ≈ | 11 mm | |
| l7 min. | 14 mm | |
| w h14 | 14 mm | |
| r1 min. | 0.3 mm | |
| Calculation data | ||
| Basic dynamic load rating C | 8.15 kN | |
| Basic static load rating C0 | 19 kN | |
| Specific dynamic load factor K | 100 N/mm² | |
| Material constant KM | 330 | |
| Mass | 0.069 kg | |
