The Schaeffler Group's INA and FAG brands stand for the development and manufacture of high-quality rolling bearings, plain bearings, linear guidance systems, and engine components for mechanical engineering, aerospace and the automotive industry worldwide.
FAG is one of the leading manufacturers of precision ball and roller bearings for the automotive, mechanical engineering and aerospace industries. FAG offers a full line of radial and angular contact ball bearings, cylindrical and spherical roller bearings, and tools and accessories that can be used to install them.
6319_Deep groove ball bearings
6319_Deep groove ball bearings_FAG Dimensions: 95 mm x 200 mm x 45 mm, Limiting Speed: 154 kN , Reference speed: 113 kN.
- Brand: FAG
- Inside Diameter: 95 mm
- Outside Diameter: 200 mm
- Width: 45 mm
- Basic dynamic load rating: 154 kN
- Basic static load rating: 113 kN
6316_Deep groove ball bearings
6316_Deep groove ball bearings_FAG Dimensions: 80 mm x 170 mm x 39 mm, Limiting Speed: 131 kN , Reference speed: 87 kN.
- Brand: FAG
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 39 mm
- Basic dynamic load rating: 131 kN
- Basic static load rating: 87 kN

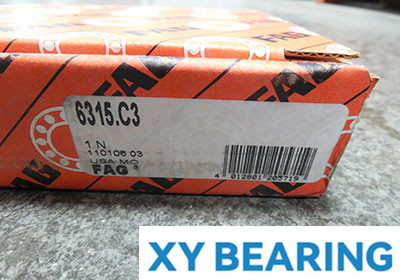

6315-C3 _Deep groove ball bearings
6315-C3 _Deep groove ball bearings_FAG Dimensions: 75 mm x 160 mm x 37 mm, Limiting Speed: 123 kN , Reference speed: 77 kN.
- Brand: FAG
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 37 mm
- Basic dynamic load rating: 123 kN
- Basic static load rating: 77 kN
6313_Deep groove ball bearings
6313_Deep groove ball bearings_FAG Dimensions: 65 mm x 140 mm x 33 mm, Limiting Speed: 100 kN , Reference speed: 60 kN.
- Brand: FAG
- Inside Diameter: 65 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 100 kN
- Basic static load rating: 60 kN
6312_Deep groove ball bearings
6312_Deep groove ball bearings_FAG Dimensions: 60 mm x 130 mm x 31 mm, Limiting Speed: 89 kN , Reference speed: 52 kN.
- Brand: FAG
- Inside Diameter: 60 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 89 kN
- Basic static load rating: 52 kN
6311_Deep groove ball bearings
6311_Deep groove ball bearings_FAG Dimensions: 55 mm x 120 mm x 29 mm, Limiting Speed: 83 kN , Reference speed: 47.5 kN.
- Brand: FAG
- Inside Diameter: 55 mm
- Outside Diameter: 120 mm
- Width: 29 mm
- Basic dynamic load rating: 83 kN
- Basic static load rating: 47.5 kN

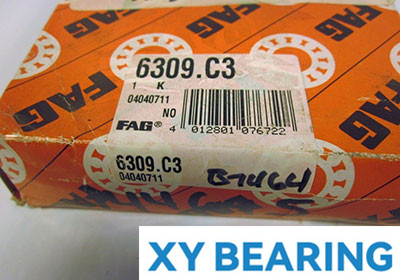

6309-C3 _Deep groove ball bearings
6309-C3 _Deep groove ball bearings_FAG Dimensions: 45 mm x 100 mm x 25 mm, Limiting Speed: 56 kN , Reference speed: 31.5 kN.
- Brand: FAG
- Inside Diameter: 45 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 56 kN
- Basic static load rating: 31.5 kN

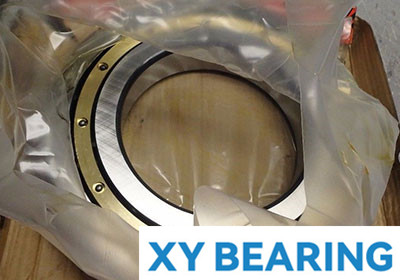

6236-M-C3 _Deep groove ball bearings
6236-M-C3 _Deep groove ball bearings_FAG Dimensions: 180 mm x 320 mm x 52 mm, Limiting Speed: 240 kN , Reference speed: 244 kN.
- Brand: FAG
- Inside Diameter: 180 mm
- Outside Diameter: 320 mm
- Width: 52 mm
- Basic dynamic load rating: 240 kN
- Basic static load rating: 244 kN

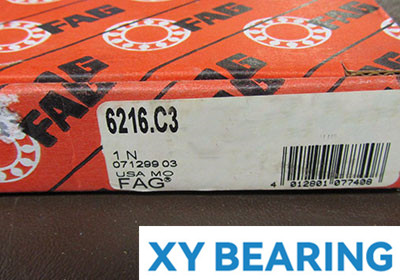

6216-C3 _Deep groove ball bearings
6216-C3 _Deep groove ball bearings_FAG Dimensions: 80 mm x 140 mm x 26 mm, Limiting Speed: 77 kN , Reference speed: 55 kN.
- Brand: FAG
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 26 mm
- Basic dynamic load rating: 77 kN
- Basic static load rating: 55 kN

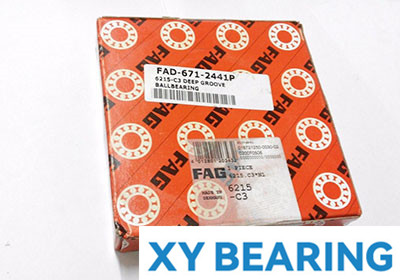

6215-C3 _Deep groove ball bearings
6215-C3 _Deep groove ball bearings_FAG Dimensions: 75 mm x 130 mm x 25 mm, Limiting Speed: 70 kN , Reference speed: 49 kN.
- Brand: FAG
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 25 mm
- Basic dynamic load rating: 70 kN
- Basic static load rating: 49 kN
