Xin You Ya Bearing have a wide range of thin section ball bearings in stock, including metric and inch designs; Deep groove ball bearings, Four-point contact bearings and Angular contact ball bearings. They are:
Brand: KAYDON, TIMKEN, SKF, NSK, INA
Metric: 6800, 6900, 8 mm, 13 mm, 20 mm, 2.5 mm series
Open bearings: KAA, KA, KB, KC, KD, KF, KG
Sealed bearings: JHA, JA, JB, JU, JG
Stainless steel bearings: SAA, SA, SB, SC, SD, SF, SG
NBC3804 -Thin walled ball bearings
NSK NBC3804 Thin walled ball bearings, In stock, Dimensions: 38.1 mm x 47.625 mm x 4.762 mm, Basic dynamic load rating: 2.81 kN, Static load rating: 2.88 kN.
- Brand: NSK
- Inside Diameter: 38.1 mm
- Outside Diameter: 47.625 mm
- Width: 4.762 mm
- Basic dynamic load rating: 2.81 kN
- Basic static load rating: 2.88 kN
NBC2504 -Thin walled ball bearings
NSK NBC2504 Thin walled ball bearings, In stock, Dimensions: 25.4 mm x 34.925 mm x 4.762 mm, Basic dynamic load rating: 2.45 kN, Static load rating: 2.01 kN.
- Brand: NSK
- Inside Diameter: 25.4 mm
- Outside Diameter: 34.925 mm
- Width: 4.762 mm
- Basic dynamic load rating: 2.45 kN
- Basic static load rating: 2.01 kN
CSXG200 -Thin walled ball bearings
INA CSXG200 Thin walled ball bearings, In stock, Dimensions: 508 mm x 558.8 mm x 25.4 mm, Basic dynamic load rating: 88 kN, Static load rating: 242 kN.
- Brand: INA
- Inside Diameter: 508 mm
- Outside Diameter: 558.8 mm
- Width: 25.4 mm
- Basic dynamic load rating: 88 kN
- Basic static load rating: 242 kN
CSXD090 -Thin walled ball bearings
INA CSXD090 Thin walled ball bearings, In stock, Dimensions: 228.6 mm x 254 mm x 12.7 mm, Basic dynamic load rating: 21.8 kN, Static load rating: 45.5 kN.
- Brand: INA
- Inside Diameter: 228.6 mm
- Outside Diameter: 254 mm
- Width: 12.7 mm
- Basic dynamic load rating: 21.8 kN
- Basic static load rating: 45.5 kN
CSEA070 -Thin walled ball bearings
INA CSEA070 Thin walled ball bearings, In stock, Dimensions: 177.8 mm x 190.5 mm x 6.35 mm, Basic dynamic load rating: 5.1 kN, Static load rating: 10.4 kN.
- Brand: INA
- Inside Diameter: 177.8 mm
- Outside Diameter: 190.5 mm
- Width: 6.35 mm
- Basic dynamic load rating: 5.1 kN
- Basic static load rating: 10.4 kN
KA100CP0 -Thin walled ball bearings
KAYDON KA100CP0 Thin walled ball bearings, In stock, Dimensions: 10 inches x 10.5 inches x 0.25 inches, Basic dynamic load rating: 969 lbs, Static load rating: 3110 lbs.
- Brand: KAYDON
- Inside Diameter: 10 inches
- Outside Diameter: 10.5 inches
- Width: 0.25 inches
- Basic dynamic load rating: 969 lbs
- Basic static load rating: 3110 lbs
KF120CP0 -Thin walled ball bearings
KAYDON KF120CP0 Thin walled ball bearings, In stock, Dimensions: 12 inches x 13.5 inches x 0.75 inches, Basic dynamic load rating: 6105 lbs, Static load rating: 14390 lbs.
- Brand: KAYDON
- Inside Diameter: 12 inches
- Outside Diameter: 13.5 inches
- Width: 0.75 inches
- Basic dynamic load rating: 6105 lbs
- Basic static load rating: 14390 lbs
KA060XP0 -Thin walled ball bearings
KAYDON KA060XP0 Thin walled ball bearings, In stock, Dimensions: 6 inches x 6.5 inches x 0.25 inches, Basic dynamic load rating: 955 lbs, Static load rating: 4740 lbs.
- Brand: KAYDON
- Inside Diameter: 6 inches
- Outside Diameter: 6.5 inches
- Width: 0.25 inches
- Basic dynamic load rating: 955 lbs
- Basic static load rating: 4740 lbs
KF300XP0 -Thin walled ball bearings
KAYDON KF300XP0 Thin walled ball bearings, In stock, Dimensions: 30 inches x 31.5 inches x 0.75 inches, Basic dynamic load rating: 13065 lbs, Static load rating: 86760 lbs.
- Brand: KAYDON
- Inside Diameter: 30 inches
- Outside Diameter: 31.5 inches
- Width: 0.75 inches
- Basic dynamic load rating: 13065 lbs
- Basic static load rating: 86760 lbs
KG200AR0 -Thin walled ball bearings
KAYDON KG200AR0 Thin walled ball bearings, In stock, Dimensions: 20 inches x 22 inches x 1 inches, Basic dynamic load rating: 13612 lbs, Static load rating: 39810 lbs.
- Brand: KAYDON
- Inside Diameter: 20 inches
- Outside Diameter: 22 inches
- Width: 1 inches
- Basic dynamic load rating: 13612 lbs
- Basic static load rating: 39810 lbs
JB025CP0 -Thin walled ball bearings
KAYDON JB025CP0 Thin walled ball bearings, In stock, Dimensions: 2.5 inches x 3.125 inches x 0.3125 inches, Basic dynamic load rating: 644 lbs, Static load rating: 1140 lbs.
- Brand: KAYDON
- Inside Diameter: 2.5 inches
- Outside Diameter: 3.125 inches
- Width: 0.3125 inches
- Basic dynamic load rating: 644 lbs
- Basic static load rating: 1140 lbs
JA025CP0 -Thin walled ball bearings
KAYDON JA025CP0 Thin walled ball bearings, In stock, Dimensions: 2.5 inches x 3 inches x 0.25 inches, Basic dynamic load rating: 442 lbs, Static load rating: 830 lbs.
- Brand: KAYDON
- Inside Diameter: 2.5 inches
- Outside Diameter: 3 inches
- Width: 0.25 inches
- Basic dynamic load rating: 442 lbs
- Basic static load rating: 830 lbs
KA040AR0 -Thin walled ball bearings
KAYDON KA040AR0 Thin walled ball bearings, In stock, Dimensions: 4 inches x 4.5 inches x 0.25 inches, Basic dynamic load rating: 595 lbs, Static load rating: 1490 lbs.
- Brand: KAYDON
- Inside Diameter: 4 inches
- Outside Diameter: 4.5 inches
- Width: 0.25 inches
- Basic dynamic load rating: 595 lbs
- Basic static load rating: 1490 lbs
KF050XP0 -Thin walled ball bearings
KAYDON KF050XP0 Thin walled ball bearings, In stock, Dimensions: 5 inches x 6.5 inches x 0.75 inches, Basic dynamic load rating: 5172 lbs, Static load rating: 16220 lbs.
- Brand: KAYDON
- Inside Diameter: 5 inches
- Outside Diameter: 6.5 inches
- Width: 0.75 inches
- Basic dynamic load rating: 5172 lbs
- Basic static load rating: 16220 lbs

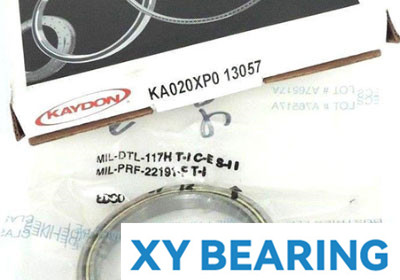

KA020XP0 -Thin walled ball bearings
KAYDON KA020XP0 Thin walled ball bearings, In stock, Dimensions: 2 inches x 2.5 inches x 0.25 inches, Basic dynamic load rating: 514 lbs, Static load rating: 1710 lbs.
- Brand: KAYDON
- Inside Diameter: 2 inches
- Outside Diameter: 2.5 inches
- Width: 0.25 inches
- Basic dynamic load rating: 514 lbs
- Basic static load rating: 1710 lbs

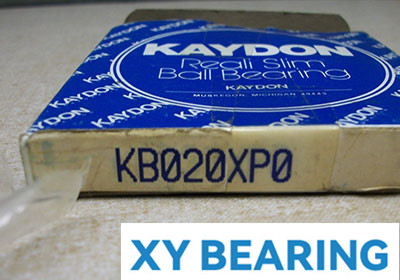

KB020XP0 -Thin walled ball bearings
KAYDON KB020XP0 Thin walled ball bearings, In stock, Dimensions: 2 inches x 2.625 inches x 0.3125 inches, Basic dynamic load rating: 758 lbs, Static load rating: 2340 lbs.
- Brand: KAYDON
- Inside Diameter: 2 inches
- Outside Diameter: 2.625 inches
- Width: 0.3125 inches
- Basic dynamic load rating: 758 lbs
- Basic static load rating: 2340 lbs

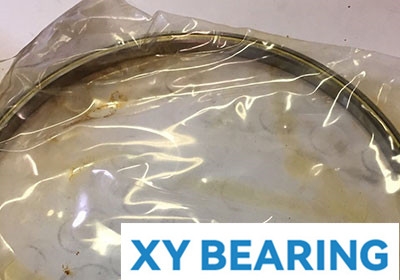

KD120XP0 -Thin walled ball bearings
KAYDON KD120XP0 Thin walled ball bearings, In stock, Dimensions: 12 inches x 13 inches x 0.5 inches, Basic dynamic load rating: 4178 lbs, Static load rating: 21380 lbs.
- Brand: KAYDON
- Inside Diameter: 12 inches
- Outside Diameter: 13 inches
- Width: 0.5 inches
- Basic dynamic load rating: 4178 lbs
- Basic static load rating: 21380 lbs

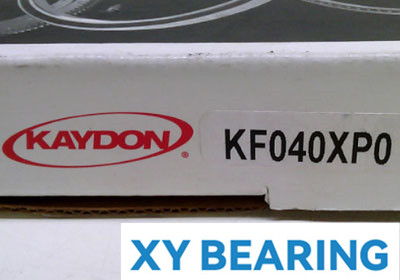

KF040XP0 -Thin walled ball bearings
KAYDON KF040XP0 Thin walled ball bearings, In stock, Dimensions: 4 inches x 5.5 inches x 0.75 inches, Basic dynamic load rating: 4665 lbs, Static load rating: 13400 lbs.
- Brand: KAYDON
- Inside Diameter: 4 inches
- Outside Diameter: 5.5 inches
- Width: 0.75 inches
- Basic dynamic load rating: 4665 lbs
- Basic static load rating: 13400 lbs

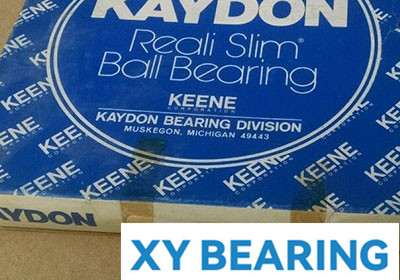

KF045XP0 -Thin walled ball bearings
KAYDON KF045XP0 Thin walled ball bearings, In stock, Dimensions: 4.5 inches x 6 inches x 0.75 inches, Basic dynamic load rating: 4923 lbs, Static load rating: 14810 lbs.
- Brand: KAYDON
- Inside Diameter: 4.5 inches
- Outside Diameter: 6 inches
- Width: 0.75 inches
- Basic dynamic load rating: 4923 lbs
- Basic static load rating: 14810 lbs

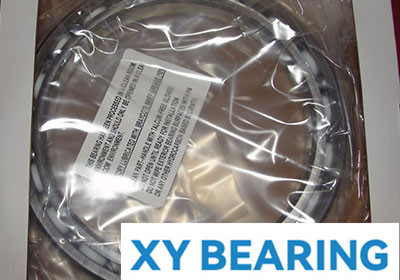

KF055AR0 -Thin walled ball bearings
KAYDON KF055AR0 Thin walled ball bearings, In stock, Dimensions: 5.5 inches x 7 inches x 0.75 inches, Basic dynamic load rating: 4319 lbs, Static load rating: 8310 lbs.
- Brand: KAYDON
- Inside Diameter: 5.5 inches
- Outside Diameter: 7 inches
- Width: 0.75 inches
- Basic dynamic load rating: 4319 lbs
- Basic static load rating: 8310 lbs
