TIMKEN 42362D - 42586 Tapered roller bearing
Also known as : 42362D - 42586
- Inside Diameter: 92.075 mm
- Outside Diameter: 148.43 mm
- Width: 57.942 mm
- Basic dynamic load rating: 284 kN
- Basic static load rating: 73.5 kN
TIMKEN 42362D - 42586
TIMKEN 42362D - 42586 details
| Bearing Number | 42362D - 42586 |
|---|---|
| Brand | TIMKEN |

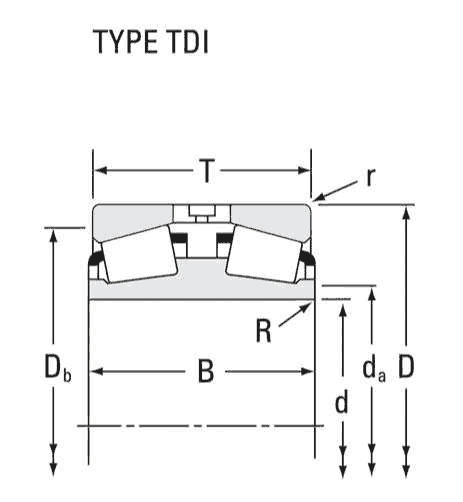

| Type | Tapered Roller Bearings - TDI (Tapered Double Inner) |
| Series | 42000 |
| Cone Part Number | 42362D |
| Cup Part Number | 42586 |
| Design Units | Imperial |
| Bearing Weight | 9.5 lb 4.3 Kg |
| Cage Type | Stamped Steel |
| Aa - Cage-Cone Backface Clearance | 0 in 0 mm |
| d - Bore | 3.6250 in 92.075 mm |
| D - Cup Outer Diameter | 5.8437 in 148.430 mm |
| B - Double Cone Width | 2.2812 in 57.942 mm |
| C - Cup Width | 1.2500 in 31.750 mm |
| T - Bearing Width across Cups | 2.7499 in 69.847 mm |
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions) | 9490 lbf 42200 N |
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions) | 63800 lbf 284000 N |
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions) | 16500 lbf 73500 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions) | 8000 lbf 35600 N |
| K - Factor | 1.19 |
| e - ISO Factor | 1.1 |
| Y1 - ISO Factor | 0.61 |
| Y2 - ISO Factor | 0.91 |
| Cg - Geometry Factor | 0.139 |
| R - Cone Frontface "To Clear" Radius | 0.060 in 1.50 mm |
| r - Cup Backface "To Clear" Radius | 0.130 in 3.30 mm |
| da - Cone Frontface Backing Diameter | 4.06 in 103.10 mm |
| Db - Cup Backface Backing Diameter | 5.24 in 133.10 mm |
| Ab - Cage-Cone Frontface Clearance | 0.14 in 3.6 mm |
TIMKEN 42362D - 42586 bearing cross reference
68450R/68709R
92.075 mmx 148.43 mmx 57.942 mm
H414245/H414210
92.075 mmx 148.43 mmx 57.942 mm
387/382A
92.075 mmx 148.43 mmx 57.942 mm
HM88630R/HM88610R
92.075 mmx 148.43 mmx 57.942 mm
02473R/02420R
92.075 mmx 148.43 mmx 57.942 mm
23100R/23256R
92.075 mmx 148.43 mmx 57.942 mm
387-384ED
92.075 mmx 148.43 mmx 57.942 mm
389-384DRB
92.075 mmx 148.43 mmx 57.942 mm
EE132083-132126D
92.075 mmx 148.43 mmx 57.942 mm
42362D - 42586
92.075 mmx 148.43 mmx 57.942 mm
L357049-L357019-B
92.075 mmx 148.43 mmx 57.942 mm
