TIMKEN L357049-L357019-B Tapered roller bearing
Also known as : L357049-L357019-B
- Inside Diameter: 304.8 mm
- Outside Diameter: 404.95 mm
- Width: 22.225 mm
- Basic dynamic load rating: 586000 kN
- Basic static load rating: 1310000 kN
TIMKEN L357049-L357019-B
TIMKEN L357049-L357019-B details
| Series | L357000 |
|---|---|
| model | L357049-L357019-B |
| Cone Part Number | L357049 |
| Cup Part Number | L357019-B |
| Design Units | Imperial |
| Cage Type | Stamped Steel |
| Bearing Weight | 17.300 Kg 38.20 lb |

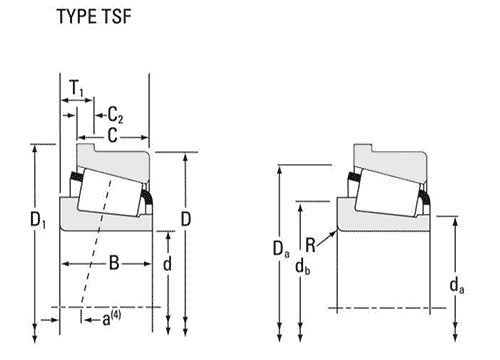

| Dimensions | |
| d - Bore | 304.8 mm 12 in |
| D - Cup Outer Diameter | 404.950 mm 15.9429 in |
| D1 - Flange Outer Diameter | 419.923 mm 16.5324 in |
| B - Cone Width | 50.8 mm 2 in |
| C - Cup Width | 38.100 mm 1.5000 in |
| C1 - Cup Flange Width | 9.525 mm 0.3750 in |
| T - Bearing Width to Flange | 22.225 mm 0.8750 in |
| T1 - Bearing Width | 50.800 mm 2.0000 in |
| Abutment and Fillet Dimensions | |
| R - Cone Backface "To Clear" Radius | 6.400 mm 0.25 in |
| r - Cup Backface "To Clear" Radius | 3.30 mm 0.130 in |
| da - Cone Frontface Backing Diameter | 319 mm 12.56 in |
| db - Cone Backface Backing Diameter | 328.90 mm 12.95 in |
| Da - Cup Frontface Backing Diameter | 383.00 mm 15.08 in |
| Ab - Cage-Cone Frontface Clearance | 2.5 mm 0.1 in |
| Aa - Cage-Cone Backface Clearance | 4.6 mm 0.18 in |
| a - Effective Center Location | 12.7 mm 0.5 in |
| Basic Load Ratings | |
| C90 - Dynamic Radial Rating (90 million revolutions) | 152000 N 34200 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions) | 586000 N 132000 lbf |
| C0 - Static Radial Rating | 1310000 N 295000 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions) | 93500 N 21000 lbf |
| Factors | |
| K - Factor | 1.63 |
| e - ISO Factor | 0.36 |
| Y - ISO Factor | 1.67 |
| G1 - Heat Generation Factor (Roller-Raceway) | 1750 |
| G2 - Heat Generation Factor (Rib-Roller End) | 301 |
| Cg - Geometry Factor | 0.158 |
