TIMKEN 05066-05186 Tapered roller bearing
Also known as : 05066-05186
- Inside Diameter: 16.993 mm
- Outside Diameter: 46.99 mm
- Width: 15.25 mm
- Basic dynamic load rating: 26.7 kN
- Basic static load rating: 25.4 kN
TIMKEN 05066-05186
TIMKEN 05066-05186 details
| Series | 05000 |
|---|---|
| model | 05066-05186 |
| Cone Part Number | 05066 |
| Cup Part Number | 05186 |
| Design Units | Imperial |
| Cage Type | Stamped Steel |
| Bearing Weight |
0.100 Kg 0.30 lb |

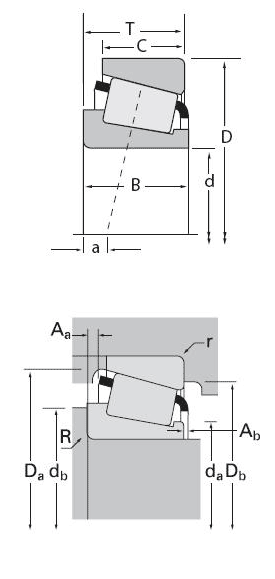

| Dimensions | |
| d - Bore |
16.993 mm 0.6690 in |
| D - Cup Outer Diameter |
46.990 mm 1.8500 in |
| B - Cone Width |
14.381 mm 0.5662 in |
| C - Cup Width |
11.999 mm 0.4724 in |
| T - Bearing Width |
15.250 mm 0.6004 in |
| Abutment and Fillet Dimensions | |
| R - Cone Backface "To Clear" Radius |
1.520 mm 0.06 in |
| r - Cup Backface "To Clear" Radius |
1.52 mm 0.06 in |
| da - Cone Frontface Backing Diameter |
22.10 mm 0.87 in |
| db - Cone Backface Backing Diameter |
24.38 mm 0.96 in |
| Da - Cup Frontface Backing Diameter |
42.93 mm 1.69 in |
| Db - Cup Backface Backing Diameter |
40.39 mm 1.59 in |
| Ab - Cage-Cone Frontface Clearance |
1.8 mm 0.07 in |
| Aa - Cage-Cone Backface Clearance |
-0.3 mm -0.01 in |
| a - Effective Center Location |
-4.10 mm -0.16 in |
| Basic Load Ratings | |
| C90 - Dynamic Radial Rating (90 million revolutions) |
6930 N 1560 lbf |
| C1 - Dynamic Radial Rating (1 million revolutions) |
26700 N 6010 lbf |
| C0 - Static Radial Rating |
25400 N 5720 lbf |
| Ca90 - Dynamic Thrust Rating (90 million revolutions) |
4230 N 952 lbf |
| Factors | |
| K - Factor | 1.64 |
| e - ISO Factor | 0.36 |
| Y - ISO Factor | 1.68 |
| G1 - Heat Generation Factor (Roller-Raceway) | 5.8 |
| G2 - Heat Generation Factor (Rib-Roller End) | 5.5 |
| Cg - Geometry Factor | 0.0448 |
