FAG 33122-N11CA Tapered roller bearing
Also known as : 33122-N11CA,
- Inside Diameter: 110 mm
- Outside Diameter: 180 mm
- Width: 112 mm
- Basic dynamic load rating: 630 kN
- Basic static load rating: 1260 kN
FAG 33122-N11CA

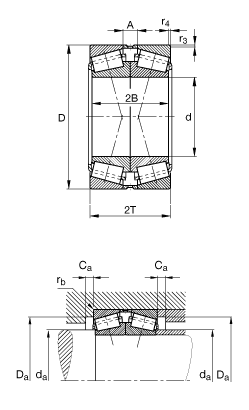

FAG 33122-N11CA details
| model | 33122-N11CA |
|---|---|
| d | 110 mm |
| D | 180 mm |
| 2T | 112 mm |
| 2B | 112 mm |
| A | 26 mm |
| Ca min | 9 mm |
| Da max | 170 mm |
| Da min | 155 mm |
| da max | 121 mm |
| r3,4 min | 2 mm |
| rb max | 2 mm |
| Cr | 630000 N, Basic dynamic load rating, radial |
| C0r | 1260000 N, Basic static load rating, radial |
| Limiting speed | 3650 1/min |
| Reference speed | 2040 1/min |
| Cur | 146000 N, Fatigue limit load, radial |
| e | 0.42 |
| Y0 | 1.58 |
| Y1 | 1.61 |
| Y2 | 2.4 |
| mass | 11.6 kg |
FAG 33122-N11CA bearing cross reference
68450R/68709R
110 mmx 180 mmx 112 mm
H414245/H414210
110 mmx 180 mmx 112 mm
387/382A
110 mmx 180 mmx 112 mm
HM88630R/HM88610R
110 mmx 180 mmx 112 mm
02473R/02420R
110 mmx 180 mmx 112 mm
23100R/23256R
110 mmx 180 mmx 112 mm
387-384ED
110 mmx 180 mmx 112 mm
389-384DRB
110 mmx 180 mmx 112 mm
EE132083-132126D
110 mmx 180 mmx 112 mm
42362D - 42586
110 mmx 180 mmx 112 mm
L357049-L357019-B
110 mmx 180 mmx 112 mm
