NSK HR30213J Tapered roller bearing
Also known as : HR30213J, 30213
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 24.75 mm
- Basic dynamic load rating: 122 kN
- Basic static load rating: 151 kN
NSK HR30213J

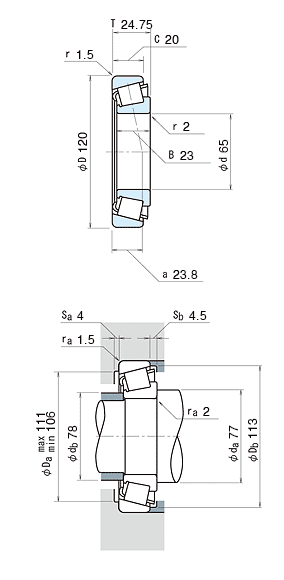

NSK HR30213J details
| model | HR30213J |
|---|---|
| d | 65 mm |
| D | 120 mm |
| T | 24.75 mm |
| B | 23 mm |
| D | 20 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr | 122000 N |
| C0r | 151000 N |
| Limiting speeds | 3000 min-1 (Grease) |
| Limiting speeds | 4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EB |
| e | 0.41 (constant) |
| y1 | 1.5 (Axial Load Factors) |
| y0 | 0.81 (Axial Load Factors) |
| Mass | 1.18 kg (approx.) |
NSK HR30213J bearing cross reference
68450R/68709R
65 mmx 120 mmx 24.75 mm
H414245/H414210
65 mmx 120 mmx 24.75 mm
387/382A
65 mmx 120 mmx 24.75 mm
HM88630R/HM88610R
65 mmx 120 mmx 24.75 mm
02473R/02420R
65 mmx 120 mmx 24.75 mm
23100R/23256R
65 mmx 120 mmx 24.75 mm
387-384ED
65 mmx 120 mmx 24.75 mm
389-384DRB
65 mmx 120 mmx 24.75 mm
EE132083-132126D
65 mmx 120 mmx 24.75 mm
42362D - 42586
65 mmx 120 mmx 24.75 mm
L357049-L357019-B
65 mmx 120 mmx 24.75 mm
