NSK HR30216J Tapered roller bearing
Also known as : HR30216J, 30216
- Inside Diameter: 80 mm
- Outside Diameter: 140 mm
- Width: 28.25 mm
- Basic dynamic load rating: 157 kN
- Basic static load rating: 195 kN
NSK HR30216J

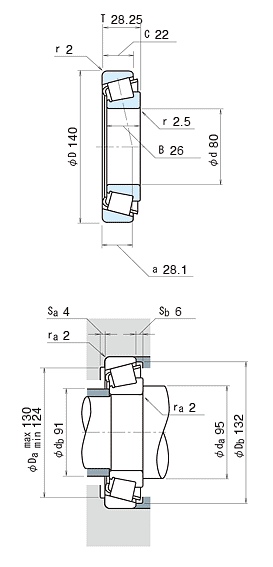

NSK HR30216J details
| model | HR30216J |
|---|---|
| d | 80 mm |
| D | 140 mm |
| T | 28.25 mm |
| B | 26 mm |
| C | 22 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr | 157000 N |
| C0r | 195000 N |
| Limiting speeds | 2600 min-1 (Grease) |
| Limiting speeds | 3400 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EB |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 1.68 kg (approx.) |
NSK HR30216J bearing cross reference
68450R/68709R
80 mmx 140 mmx 28.25 mm
H414245/H414210
80 mmx 140 mmx 28.25 mm
387/382A
80 mmx 140 mmx 28.25 mm
HM88630R/HM88610R
80 mmx 140 mmx 28.25 mm
02473R/02420R
80 mmx 140 mmx 28.25 mm
23100R/23256R
80 mmx 140 mmx 28.25 mm
387-384ED
80 mmx 140 mmx 28.25 mm
389-384DRB
80 mmx 140 mmx 28.25 mm
EE132083-132126D
80 mmx 140 mmx 28.25 mm
42362D - 42586
80 mmx 140 mmx 28.25 mm
L357049-L357019-B
80 mmx 140 mmx 28.25 mm
