NSK HR30219J Tapered roller bearing
Also known as : HR30219J, 30219
- Inside Diameter: 95 mm
- Outside Diameter: 170 mm
- Width: 34.5 mm
- Basic dynamic load rating: 223 kN
- Basic static load rating: 286 kN
NSK HR30219J

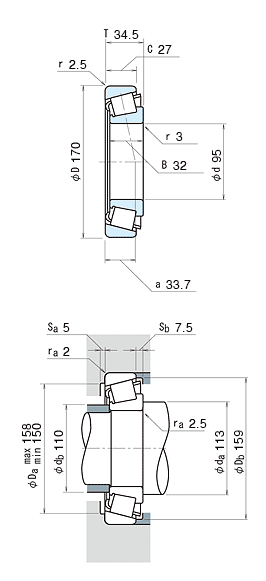

NSK HR30219J details
| model | HR30219J |
|---|---|
| d | 95 mm |
| D | 170 mm |
| T | 34.5 mm |
| B | 32 mm |
| C | 27 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr | 223000 N |
| C0r | 286000 N |
| Limiting speeds | 2200 min-1 (Grease) |
| Limiting speeds | 2800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FB |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 3.13 kg (approx.) |
NSK HR30219J bearing cross reference
68450R/68709R
95 mmx 170 mmx 34.5 mm
H414245/H414210
95 mmx 170 mmx 34.5 mm
387/382A
95 mmx 170 mmx 34.5 mm
HM88630R/HM88610R
95 mmx 170 mmx 34.5 mm
02473R/02420R
95 mmx 170 mmx 34.5 mm
23100R/23256R
95 mmx 170 mmx 34.5 mm
387-384ED
95 mmx 170 mmx 34.5 mm
389-384DRB
95 mmx 170 mmx 34.5 mm
EE132083-132126D
95 mmx 170 mmx 34.5 mm
42362D - 42586
95 mmx 170 mmx 34.5 mm
L357049-L357019-B
95 mmx 170 mmx 34.5 mm
