NSK HR30307J Tapered roller bearing
Also known as : HR30307J, 30307
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 22.75 mm
- Basic dynamic load rating: 76 kN
- Basic static load rating: 79 kN
NSK HR30307J

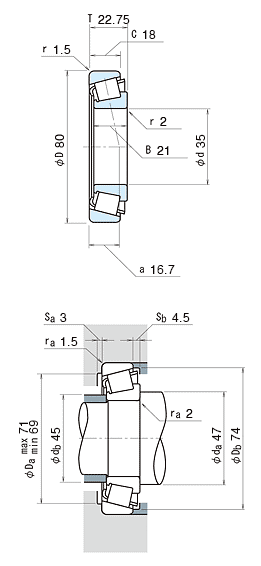

NSK HR30307J details
| model | HR30307J |
|---|---|
| d | 35 mm |
| D | 80 mm |
| T | 22.75 mm |
| B | 21 mm |
| C | 18 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr | 76000 N |
| C0r | 79000 N |
| Limiting speeds | 4800 min-1 (Grease) |
| Limiting speeds | 6700 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2FB |
| e | 0.32 (constant) |
| y1 | 1.9 (Axial Load Factors) |
| y0 | 1.1 (Axial Load Factors) |
| Mass | 0.538 kg (approx.) |
NSK HR30307J bearing cross reference
68450R/68709R
35 mmx 80 mmx 22.75 mm
H414245/H414210
35 mmx 80 mmx 22.75 mm
387/382A
35 mmx 80 mmx 22.75 mm
HM88630R/HM88610R
35 mmx 80 mmx 22.75 mm
02473R/02420R
35 mmx 80 mmx 22.75 mm
23100R/23256R
35 mmx 80 mmx 22.75 mm
387-384ED
35 mmx 80 mmx 22.75 mm
389-384DRB
35 mmx 80 mmx 22.75 mm
EE132083-132126D
35 mmx 80 mmx 22.75 mm
42362D - 42586
35 mmx 80 mmx 22.75 mm
L357049-L357019-B
35 mmx 80 mmx 22.75 mm
