NSK HR30316J

NSK HR30316J Tapered roller bearing

Also known as : HR30316J, 30316

Inside Diameter: 80 mm
Outside Diameter: 170 mm
Width: 42.5 mm
Basic dynamic load rating: 276 kN
Basic static load rating: 330 kN

NSK HR30316J

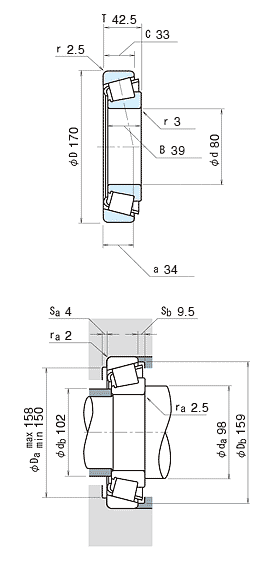

NSK HR30316J details

model	HR30316J
d	80 mm
D	170 mm
T	42.5 mm
B	39 mm
C	33 mm
Cone r_min.	3 mm
Cup r_min.	2.5 mm
C_r	276000 N 28200 kgf
C_0r	330000 N 33500 kgf
Limiting speeds	2200 min^-1 (Grease)
Limiting speeds	3000 min^-1 (Oil)
ISO355 Dimensions Series approx.	2GB
e	0.35 (constant)
y₁	1.7 (Axial Load Factors)
y₀	0.96 (Axial Load Factors)
Mass	4.27 kg (approx.)

NSK HR30316J bearing cross reference

68450R/68709R
80 mmx 170 mmx 42.5 mm

H414245/H414210
80 mmx 170 mmx 42.5 mm

387/382A
80 mmx 170 mmx 42.5 mm

HM88630R/HM88610R
80 mmx 170 mmx 42.5 mm

02473R/02420R
80 mmx 170 mmx 42.5 mm

23100R/23256R
80 mmx 170 mmx 42.5 mm

387-384ED
80 mmx 170 mmx 42.5 mm

389-384DRB
80 mmx 170 mmx 42.5 mm

EE132083-132126D
80 mmx 170 mmx 42.5 mm

42362D - 42586
80 mmx 170 mmx 42.5 mm

L357049-L357019-B
80 mmx 170 mmx 42.5 mm

EE291175-291750-B
80 mmx 170 mmx 42.5 mm
