NSK HR30318J Tapered roller bearing
Also known as : HR30318J, 30318
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 46.5 mm
- Basic dynamic load rating: 345 kN
- Basic static load rating: 425 kN
NSK HR30318J

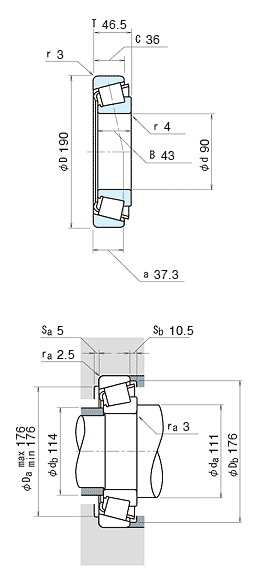

NSK HR30318J details
| model | HR30318J |
|---|---|
| d | 90 mm |
| D | 190 mm |
| T | 46.5 mm |
| B | 43 mm |
| C | 36 mm |
| Cone rmin. | 4 mm |
| Cup rmin. | 3 mm |
| Cr |
345000 N 35500 kgf |
| C0r |
425000 N 43000 kgf |
| Limiting speeds |
1900 min-1 (Grease) |
| Limiting speeds |
2600 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2GB |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 5.91 kg (approx.) |
NSK HR30318J bearing cross reference
68450R/68709R
90 mmx 190 mmx 46.5 mm
H414245/H414210
90 mmx 190 mmx 46.5 mm
387/382A
90 mmx 190 mmx 46.5 mm
HM88630R/HM88610R
90 mmx 190 mmx 46.5 mm
02473R/02420R
90 mmx 190 mmx 46.5 mm
23100R/23256R
90 mmx 190 mmx 46.5 mm
387-384ED
90 mmx 190 mmx 46.5 mm
389-384DRB
90 mmx 190 mmx 46.5 mm
EE132083-132126D
90 mmx 190 mmx 46.5 mm
42362D - 42586
90 mmx 190 mmx 46.5 mm
L357049-L357019-B
90 mmx 190 mmx 46.5 mm
