NSK HR32034XJ Tapered roller bearing
Also known as : HR32034XJ, 32034
- Inside Diameter: 170 mm
- Outside Diameter: 260 mm
- Width: 57 mm
- Basic dynamic load rating: 505 kN
- Basic static load rating: 890 kN
NSK HR32034XJ

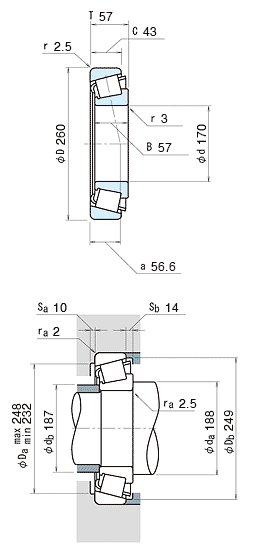

NSK HR32034XJ details
| model | HR32034XJ |
|---|---|
| d | 170 mm |
| D | 260 mm |
| T | 57 mm |
| B | 57 mm |
| C | 43 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
505000 N 51500 kgf |
| C0r |
890000 N 90500 kgf |
| Limiting speeds |
1200 min-1 (Grease) |
| Limiting speeds |
1700 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
4EC |
| e | 0.44 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.74 (Axial Load Factors) |
| Mass | 10.6 kg (approx.) |
NSK HR32034XJ bearing cross reference
68450R/68709R
170 mmx 260 mmx 57 mm
H414245/H414210
170 mmx 260 mmx 57 mm
387/382A
170 mmx 260 mmx 57 mm
HM88630R/HM88610R
170 mmx 260 mmx 57 mm
02473R/02420R
170 mmx 260 mmx 57 mm
23100R/23256R
170 mmx 260 mmx 57 mm
387-384ED
170 mmx 260 mmx 57 mm
389-384DRB
170 mmx 260 mmx 57 mm
EE132083-132126D
170 mmx 260 mmx 57 mm
42362D - 42586
170 mmx 260 mmx 57 mm
L357049-L357019-B
170 mmx 260 mmx 57 mm
