NSK HR32211J Tapered roller bearing
Also known as : HR32211J, 32211
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 26.75 mm
- Basic dynamic load rating: 110 kN
- Basic static load rating: 137 kN
NSK HR32211J

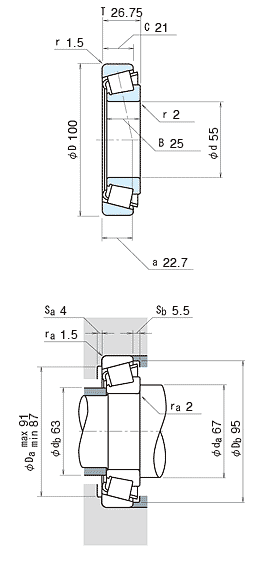

NSK HR32211J details
| model | HR32211J |
|---|---|
| d | 55 mm |
| D | 100 mm |
| T | 26.75 mm |
| B | 25 mm |
| C | 21 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
110000 N 11200 kgf |
| C0r |
137000 N 14000 kgf |
| Limiting speeds |
3600 min-1 (Grease) |
| Limiting speeds |
5000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3DC |
| e | 0.41 (constant) |
| y1 | 1.5 (Axial Load Factors) |
| y0 | 0.81 (Axial Load Factors) |
| Mass | 0.859 kg (approx.) |
NSK HR32211J bearing cross reference
68450R/68709R
55 mmx 100 mmx 26.75 mm
H414245/H414210
55 mmx 100 mmx 26.75 mm
387/382A
55 mmx 100 mmx 26.75 mm
HM88630R/HM88610R
55 mmx 100 mmx 26.75 mm
02473R/02420R
55 mmx 100 mmx 26.75 mm
23100R/23256R
55 mmx 100 mmx 26.75 mm
387-384ED
55 mmx 100 mmx 26.75 mm
389-384DRB
55 mmx 100 mmx 26.75 mm
EE132083-132126D
55 mmx 100 mmx 26.75 mm
42362D - 42586
55 mmx 100 mmx 26.75 mm
L357049-L357019-B
55 mmx 100 mmx 26.75 mm
