NSK HR32213J Tapered roller bearing
Also known as : HR32213J, 32213
- Inside Diameter: 65 mm
- Outside Diameter: 120 mm
- Width: 32.75 mm
- Basic dynamic load rating: 157 kN
- Basic static load rating: 202 kN
NSK HR32213J

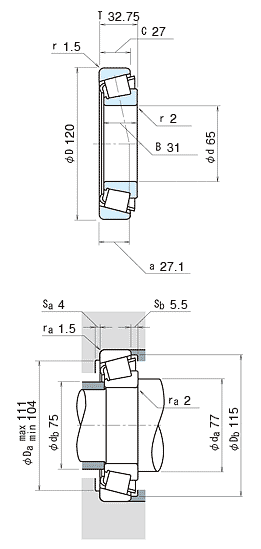

NSK HR32213J details
| model | HR32213J |
|---|---|
| d | 65 mm |
| D | 120 mm |
| T | 32.75 mm |
| B | 31 mm |
| C | 27 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
157000 N 16000 kgf |
| C0r |
202000 N 20600 kgf |
| Limiting speeds |
3000 min-1 (Grease) |
| Limiting speeds |
4000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EC |
| e | 0.41 (constant) |
| y1 | 1.5 (Axial Load Factors) |
| y0 | 0.81 (Axial Load Factors) |
| Mass | 1.55 kg (approx.) |
NSK HR32213J bearing cross reference
68450R/68709R
65 mmx 120 mmx 32.75 mm
H414245/H414210
65 mmx 120 mmx 32.75 mm
387/382A
65 mmx 120 mmx 32.75 mm
HM88630R/HM88610R
65 mmx 120 mmx 32.75 mm
02473R/02420R
65 mmx 120 mmx 32.75 mm
23100R/23256R
65 mmx 120 mmx 32.75 mm
387-384ED
65 mmx 120 mmx 32.75 mm
389-384DRB
65 mmx 120 mmx 32.75 mm
EE132083-132126D
65 mmx 120 mmx 32.75 mm
42362D - 42586
65 mmx 120 mmx 32.75 mm
L357049-L357019-B
65 mmx 120 mmx 32.75 mm
