NSK HR32215J Tapered roller bearing
Also known as : HR32215J, 32215
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 33.25 mm
- Basic dynamic load rating: 165 kN
- Basic static load rating: 219 kN
NSK HR32215J
NSK HR32215J details

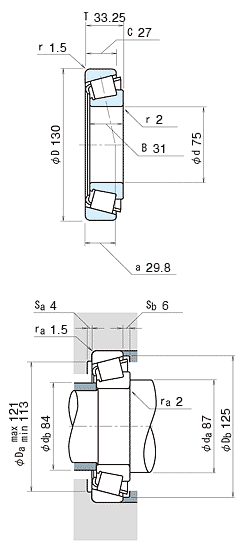

| model | HR32215J |
|---|---|
| d | 75 mm |
| D | 130 mm |
| T | 33.25 mm |
| B | 31 mm |
| C | 27 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
165000 N 16900 kgf |
| C0r |
219000 N 22400 kgf |
| Limiting speeds |
2800 min-1 (Grease) |
| Limiting speeds |
3800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
4DC |
| e | 0.44 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.76 (Axial Load Factors) |
| Mass | 1.72 kg (approx.) |
NSK HR32215J bearing cross reference
68450R/68709R
75 mmx 130 mmx 33.25 mm
H414245/H414210
75 mmx 130 mmx 33.25 mm
387/382A
75 mmx 130 mmx 33.25 mm
HM88630R/HM88610R
75 mmx 130 mmx 33.25 mm
02473R/02420R
75 mmx 130 mmx 33.25 mm
23100R/23256R
75 mmx 130 mmx 33.25 mm
387-384ED
75 mmx 130 mmx 33.25 mm
389-384DRB
75 mmx 130 mmx 33.25 mm
EE132083-132126D
75 mmx 130 mmx 33.25 mm
42362D - 42586
75 mmx 130 mmx 33.25 mm
L357049-L357019-B
75 mmx 130 mmx 33.25 mm
