NSK HR32217J Tapered roller bearing
Also known as : HR32217J, 32217
- Inside Diameter: 85 mm
- Outside Diameter: 150 mm
- Width: 38.5 mm
- Basic dynamic load rating: 210 kN
- Basic static load rating: 277 kN
NSK HR32217J

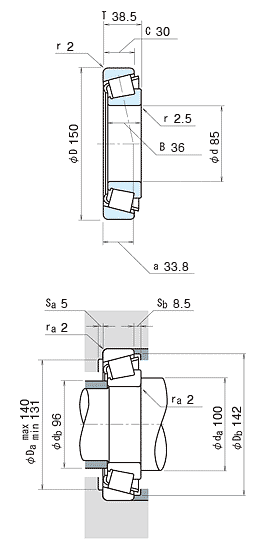

NSK HR32217J details
| model | HR32217J |
|---|---|
| d | 85 mm |
| D | 150 mm |
| T | 38.5 mm |
| B | 36 mm |
| C | 30 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
210000 N 21400 kgf |
| C0r |
277000 N 28200 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
3200 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3EC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 2.64 kg (approx.) |
NSK HR32217J bearing cross reference
68450R/68709R
85 mmx 150 mmx 38.5 mm
H414245/H414210
85 mmx 150 mmx 38.5 mm
387/382A
85 mmx 150 mmx 38.5 mm
HM88630R/HM88610R
85 mmx 150 mmx 38.5 mm
02473R/02420R
85 mmx 150 mmx 38.5 mm
23100R/23256R
85 mmx 150 mmx 38.5 mm
387-384ED
85 mmx 150 mmx 38.5 mm
389-384DRB
85 mmx 150 mmx 38.5 mm
EE132083-132126D
85 mmx 150 mmx 38.5 mm
42362D - 42586
85 mmx 150 mmx 38.5 mm
L357049-L357019-B
85 mmx 150 mmx 38.5 mm
