NSK HR32218J Tapered roller bearing
Also known as : HR32218J, 32218
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 42.5 mm
- Basic dynamic load rating: 256 kN
- Basic static load rating: 350 kN
NSK HR32218J

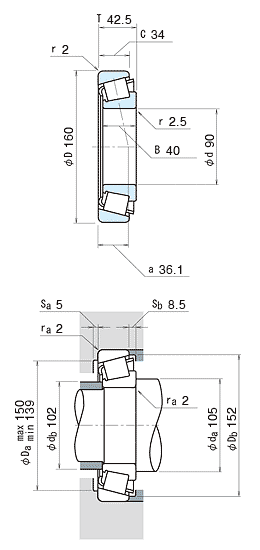

NSK HR32218J details
| model | HR32218J |
|---|---|
| d | 90 mm |
| D | 160 mm |
| T | 42.5 mm |
| B | 40 mm |
| C | 34 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
256000 N 26100 kgf |
| C0r |
350000 N 35500 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
3000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 3.41 kg (approx.) |
NSK HR32218J bearing cross reference
68450R/68709R
90 mmx 160 mmx 42.5 mm
H414245/H414210
90 mmx 160 mmx 42.5 mm
387/382A
90 mmx 160 mmx 42.5 mm
HM88630R/HM88610R
90 mmx 160 mmx 42.5 mm
02473R/02420R
90 mmx 160 mmx 42.5 mm
23100R/23256R
90 mmx 160 mmx 42.5 mm
387-384ED
90 mmx 160 mmx 42.5 mm
389-384DRB
90 mmx 160 mmx 42.5 mm
EE132083-132126D
90 mmx 160 mmx 42.5 mm
42362D - 42586
90 mmx 160 mmx 42.5 mm
L357049-L357019-B
90 mmx 160 mmx 42.5 mm
