NSK HR32219J Tapered roller bearing
Also known as : HR32219J, 32219
- Inside Diameter: 95 mm
- Outside Diameter: 170 mm
- Width: 45.5 mm
- Basic dynamic load rating: 289 kN
- Basic static load rating: 400 kN

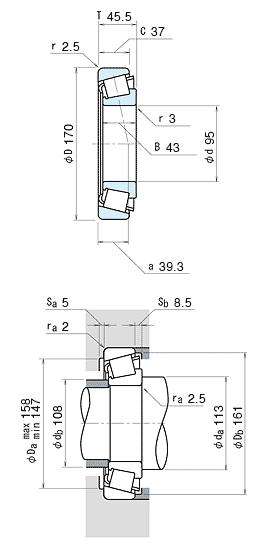

NSK HR32219J
NSK HR32219J details
| model | HR32219J |
|---|---|
| d | 95 mm |
| D | 170 mm |
| T | 45.5 mm |
| B | 43 mm |
| C | 37 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
289000 N 29500 kgf |
| C0r |
400000 N 40500 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
2800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 4.22 kg (approx.) |
NSK HR32219J bearing cross reference
68450R/68709R
95 mmx 170 mmx 45.5 mm
H414245/H414210
95 mmx 170 mmx 45.5 mm
387/382A
95 mmx 170 mmx 45.5 mm
HM88630R/HM88610R
95 mmx 170 mmx 45.5 mm
02473R/02420R
95 mmx 170 mmx 45.5 mm
23100R/23256R
95 mmx 170 mmx 45.5 mm
387-384ED
95 mmx 170 mmx 45.5 mm
389-384DRB
95 mmx 170 mmx 45.5 mm
EE132083-132126D
95 mmx 170 mmx 45.5 mm
42362D - 42586
95 mmx 170 mmx 45.5 mm
L357049-L357019-B
95 mmx 170 mmx 45.5 mm
