NSK HR32221J Tapered roller bearing
Also known as : HR32221J, 32221
- Inside Diameter: 105 mm
- Outside Diameter: 190 mm
- Width: 53 mm
- Basic dynamic load rating: 360 kN
- Basic static load rating: 510 kN
NSK HR32221J

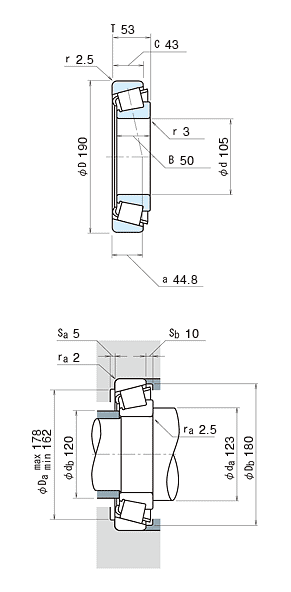

NSK HR32221J details
| model | HR32221J |
|---|---|
| d | 105 mm |
| D | 190 mm |
| T | 53 mm |
| B | 50 mm |
| C | 43 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
360000 N 37000 kgf |
| C0r |
510000 N 52000 kgf |
| Limiting speeds |
1900 min-1 (Grease) |
| Limiting speeds |
2600 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3FC |
| e | 0.42 (constant) |
| y1 | 1.4 (Axial Load Factors) |
| y0 | 0.79 (Axial Load Factors) |
| Mass | 6.25 kg (approx.) |
NSK HR32221J bearing cross reference
68450R/68709R
105 mmx 190 mmx 53 mm
H414245/H414210
105 mmx 190 mmx 53 mm
387/382A
105 mmx 190 mmx 53 mm
HM88630R/HM88610R
105 mmx 190 mmx 53 mm
02473R/02420R
105 mmx 190 mmx 53 mm
23100R/23256R
105 mmx 190 mmx 53 mm
387-384ED
105 mmx 190 mmx 53 mm
389-384DRB
105 mmx 190 mmx 53 mm
EE132083-132126D
105 mmx 190 mmx 53 mm
42362D - 42586
105 mmx 190 mmx 53 mm
L357049-L357019-B
105 mmx 190 mmx 53 mm
