NSK HR32308J Tapered roller bearing
Also known as : HR32308J, 32308
- Inside Diameter: 40 mm
- Outside Diameter: 90 mm
- Width: 35.25 mm
- Basic dynamic load rating: 120 kN
- Basic static load rating: 145 kN
NSK HR32308J

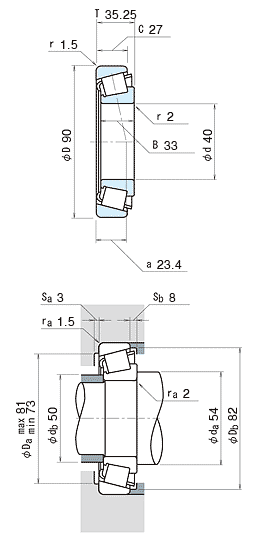

NSK HR32308J details
| model | HR32308J |
|---|---|
| d | 40 mm |
| D | 90 mm |
| T | 35.25 mm |
| B | 33 mm |
| C | 27 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
120000 N 12200 kgf |
| C0r |
145000 N 14800 kgf |
| Limiting speeds |
4300 min-1 (Grease) |
| Limiting speeds |
6000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2FD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 1.05 kg (approx.) |
NSK HR32308J bearing cross reference
68450R/68709R
40 mmx 90 mmx 35.25 mm
H414245/H414210
40 mmx 90 mmx 35.25 mm
387/382A
40 mmx 90 mmx 35.25 mm
HM88630R/HM88610R
40 mmx 90 mmx 35.25 mm
02473R/02420R
40 mmx 90 mmx 35.25 mm
23100R/23256R
40 mmx 90 mmx 35.25 mm
387-384ED
40 mmx 90 mmx 35.25 mm
389-384DRB
40 mmx 90 mmx 35.25 mm
EE132083-132126D
40 mmx 90 mmx 35.25 mm
42362D - 42586
40 mmx 90 mmx 35.25 mm
L357049-L357019-B
40 mmx 90 mmx 35.25 mm
