NSK HR32310J Tapered roller bearing
Also known as : HR32310J, 32310
- Inside Diameter: 50 mm
- Outside Diameter: 110 mm
- Width: 42.25 mm
- Basic dynamic load rating: 176 kN
- Basic static load rating: 220 kN
NSK HR32310J

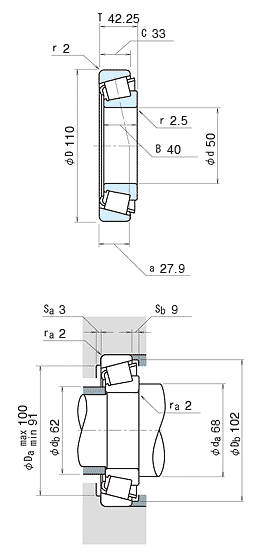

NSK HR32310J details
| model | HR32310J |
|---|---|
| d | 50 mm |
| D | 110 mm |
| T | 42.25 mm |
| B | 40 mm |
| C | 33 mm |
| Cone rmin. | 2.5 mm |
| Cup rmin. | 2 mm |
| Cr |
176000 N 17900 kgf |
| C0r |
220000 N 22400 kgf |
| Limiting speeds |
3600 min-1 (Grease) |
| Limiting speeds |
4800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2FD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 1.88 kg (approx.) |
NSK HR32310J bearing cross reference
68450R/68709R
50 mmx 110 mmx 42.25 mm
H414245/H414210
50 mmx 110 mmx 42.25 mm
387/382A
50 mmx 110 mmx 42.25 mm
HM88630R/HM88610R
50 mmx 110 mmx 42.25 mm
02473R/02420R
50 mmx 110 mmx 42.25 mm
23100R/23256R
50 mmx 110 mmx 42.25 mm
387-384ED
50 mmx 110 mmx 42.25 mm
389-384DRB
50 mmx 110 mmx 42.25 mm
EE132083-132126D
50 mmx 110 mmx 42.25 mm
42362D - 42586
50 mmx 110 mmx 42.25 mm
L357049-L357019-B
50 mmx 110 mmx 42.25 mm
