NSK HR32316J Tapered roller bearing
Also known as : HR32316J, 32316
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 61.5 mm
- Basic dynamic load rating: 385 kN
- Basic static load rating: 505 kN
NSK HR32316J

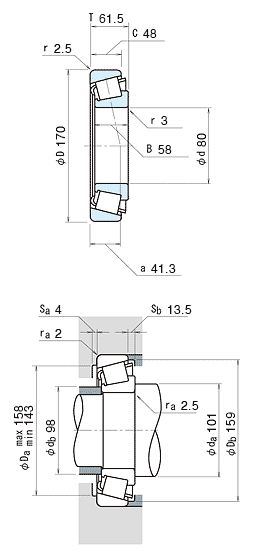

NSK HR32316J details
| model | HR32316J |
|---|---|
| d | 80 mm |
| D | 170 mm |
| T | 61.5 mm |
| B | 58 mm |
| C | 48 mm |
| Cone rmin. | 3 mm |
| Cup rmin. | 2.5 mm |
| Cr |
385000 N 39000 kgf |
| C0r |
505000 N 51500 kgf |
| Limiting speeds |
2200 min-1 (Grease) |
| Limiting speeds |
3000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2GD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 6.35 kg (approx.) |
NSK HR32316J bearing cross reference
68450R/68709R
80 mmx 170 mmx 61.5 mm
H414245/H414210
80 mmx 170 mmx 61.5 mm
387/382A
80 mmx 170 mmx 61.5 mm
HM88630R/HM88610R
80 mmx 170 mmx 61.5 mm
02473R/02420R
80 mmx 170 mmx 61.5 mm
23100R/23256R
80 mmx 170 mmx 61.5 mm
387-384ED
80 mmx 170 mmx 61.5 mm
389-384DRB
80 mmx 170 mmx 61.5 mm
EE132083-132126D
80 mmx 170 mmx 61.5 mm
42362D - 42586
80 mmx 170 mmx 61.5 mm
L357049-L357019-B
80 mmx 170 mmx 61.5 mm
