NSK HR32317J Tapered roller bearing
Also known as : HR32317J, 32317
- Inside Diameter: 85 mm
- Outside Diameter: 180 mm
- Width: 63.5 mm
- Basic dynamic load rating: 410 kN
- Basic static load rating: 535 kN
NSK HR32317J

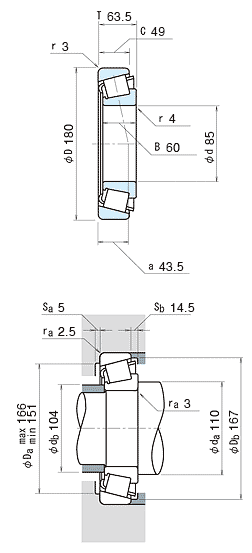

NSK HR32317J details
| model | HR32317J |
|---|---|
| d | 85 mm |
| D | 180 mm |
| T | 63.5 mm |
| B | 60 mm |
| C | 49 mm |
| Cone rmin. | 4 mm |
| Cup rmin. | 3 mm |
| Cr |
410000 N 42000 kgf |
| C0r |
535000 N 54500 kgf |
| Limiting speeds |
2000 min-1 (Grease) |
| Limiting speeds |
2800 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2GD |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 7.31 kg (approx.) |
NSK HR32317J bearing cross reference
68450R/68709R
85 mmx 180 mmx 63.5 mm
H414245/H414210
85 mmx 180 mmx 63.5 mm
387/382A
85 mmx 180 mmx 63.5 mm
HM88630R/HM88610R
85 mmx 180 mmx 63.5 mm
02473R/02420R
85 mmx 180 mmx 63.5 mm
23100R/23256R
85 mmx 180 mmx 63.5 mm
387-384ED
85 mmx 180 mmx 63.5 mm
389-384DRB
85 mmx 180 mmx 63.5 mm
EE132083-132126D
85 mmx 180 mmx 63.5 mm
42362D - 42586
85 mmx 180 mmx 63.5 mm
L357049-L357019-B
85 mmx 180 mmx 63.5 mm
