NSK HR32914J Tapered roller bearing
Also known as : HR32914J, 32914
- Inside Diameter: 70 mm
- Outside Diameter: 100 mm
- Width: 20 mm
- Basic dynamic load rating: 70 kN
- Basic static load rating: 113 kN
NSK HR32914J

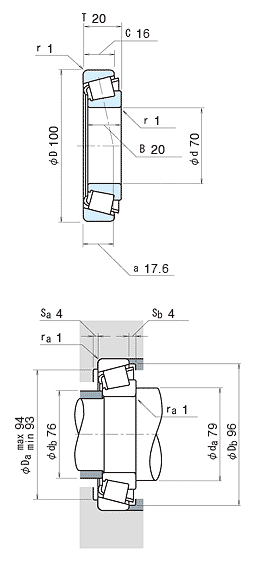

NSK HR32914J details
| model | HR32914J |
|---|---|
| d | 70 mm |
| D | 100 mm |
| T | 20 mm |
| B | 20 mm |
| C | 16 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr |
70000 N 7150 kgf |
| C0r |
113000 N 11500 kgf |
| Limiting speeds |
3200 min-1 (Grease) |
| Limiting speeds |
4500 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2BC |
| e | 0.32 (constant) |
| y1 | 1.9 (Axial Load Factors) |
| y0 | 1.1 (Axial Load Factors) |
| Mass | 0.494 kg (approx.) |
NSK HR32914J bearing cross reference
68450R/68709R
70 mmx 100 mmx 20 mm
H414245/H414210
70 mmx 100 mmx 20 mm
387/382A
70 mmx 100 mmx 20 mm
HM88630R/HM88610R
70 mmx 100 mmx 20 mm
02473R/02420R
70 mmx 100 mmx 20 mm
23100R/23256R
70 mmx 100 mmx 20 mm
387-384ED
70 mmx 100 mmx 20 mm
389-384DRB
70 mmx 100 mmx 20 mm
EE132083-132126D
70 mmx 100 mmx 20 mm
42362D - 42586
70 mmx 100 mmx 20 mm
L357049-L357019-B
70 mmx 100 mmx 20 mm
