NSK HR33205J Tapered roller bearing
Also known as : HR33205J, 33205
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 22 mm
- Basic dynamic load rating: 47.5 kN
- Basic static load rating: 56.5 kN
NSK HR33205J

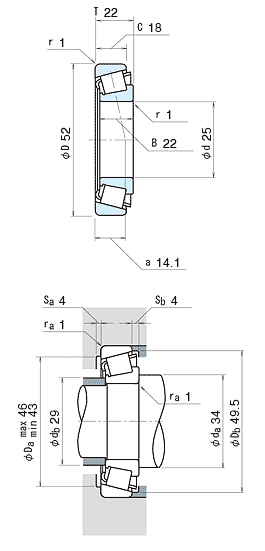

NSK HR33205J details
| model | HR33205J |
|---|---|
| d | 25 mm |
| D | 52 mm |
| T | 22 mm |
| B | 22 mm |
| C | 18 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr |
47500 N 4850 kgf |
| C0r |
56500 N 5750 kgf |
| Limiting speeds |
7500 min-1 (Grease) |
| Limiting speeds |
10000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2DE |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.94 (Axial Load Factors) |
| Mass | 0.221 kg (approx.) |
NSK HR33205J bearing cross reference
68450R/68709R
25 mmx 52 mmx 22 mm
H414245/H414210
25 mmx 52 mmx 22 mm
387/382A
25 mmx 52 mmx 22 mm
HM88630R/HM88610R
25 mmx 52 mmx 22 mm
02473R/02420R
25 mmx 52 mmx 22 mm
23100R/23256R
25 mmx 52 mmx 22 mm
387-384ED
25 mmx 52 mmx 22 mm
389-384DRB
25 mmx 52 mmx 22 mm
EE132083-132126D
25 mmx 52 mmx 22 mm
42362D - 42586
25 mmx 52 mmx 22 mm
L357049-L357019-B
25 mmx 52 mmx 22 mm
