SKF SKF 33205 Tapered roller bearing
Also known as : 33205
- Inside Diameter: 25 mm
- Outside Diameter: 52 mm
- Width: 22 mm
- Basic dynamic load rating: 57.9 kN
- Basic static load rating: 56 kN
SKF SKF 33205
SKF SKF 33205 details

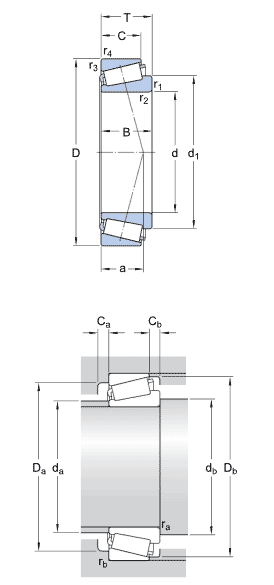

| model | 33205 |
|---|---|
| Dimension series | 2CE |
| d | 25 mm |
| D | 52 mm |
| T | 22 mm |
| d1 ≈ | 38.7 mm |
| B | 22 mm |
| C | 18 mm |
| r1,2 min. | 1 mm |
| r3,4 min. | 1 mm |
| a | 13.873 mm |
| da max. | 31 mm |
| db min. | 32 mm |
| Da min. | 43 mm |
| Da max. | 46 mm |
| Db min. | 49 mm |
| Ca min. | 4 mm |
| Cb min. | 4 mm |
| ra max. | 1 mm |
| rb max. | 1 mm |
| Calculation data | |
| C | 57.9 kN, Basic dynamic load rating |
| C0 | 56 kN, Basic static load rating |
| Pu | 6 kN, Fatigue load limit |
| Reference speed | 10000 r/min |
| Limiting speed | 13000 r/min |
| e | 0.35, Calculation factor |
| Y | 1.7, Calculation factor |
| Y0 | 0.9, Calculation factor |
| Mass | 0.22 kg |
