SKF SKF 32316 Tapered roller bearing
Also known as : 32316,32316-A,32316-B,32316-XL
- Inside Diameter: 80 mm
- Outside Diameter: 170 mm
- Width: 61.5 mm
- Basic dynamic load rating: 465 kN
- Basic static load rating: 500 kN
SKF SKF 32316

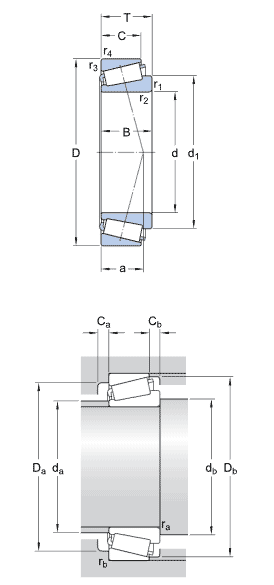

SKF SKF 32316 details
| model | 32316 |
|---|---|
| Dimension series | 2GD |
| d | 80 mm |
| D | 170 mm |
| T | 61.5 mm |
| d1 ≈ | 120.76 mm |
| B | 58 mm |
| C | 48 mm |
| r1,2 min. | 3 mm |
| r3,4 min. | 2.5 mm |
| a | 40.528 mm |
| da max. | 98 mm |
| db min. | 93.5 mm |
| Da min. | 142 mm |
| Da max. | 159 mm |
| Db min. | 159 mm |
| Ca min. | 7 mm |
| Cb min. | 13.5 mm |
| ra max. | 3 mm |
| rb max. | 2.5 mm |
| Calculation data | |
| C | 465 kN, Basic dynamic load rating |
| C0 | 500 kN, Basic static load rating |
| Pu | 56 kN, Fatigue load limit |
| Reference speed | 3200 r/min |
| Limiting speed | 4000 r/min |
| e | 0.35, Calculation factor |
| Y | 1.7, Calculation factor |
| Y0 | 0.9, Calculation factor |
| Mass | 6.19 kg |
SKF SKF 32316 bearing cross reference
68450R/68709R
80 mmx 170 mmx 61.5 mm
H414245/H414210
80 mmx 170 mmx 61.5 mm
387/382A
80 mmx 170 mmx 61.5 mm
HM88630R/HM88610R
80 mmx 170 mmx 61.5 mm
02473R/02420R
80 mmx 170 mmx 61.5 mm
23100R/23256R
80 mmx 170 mmx 61.5 mm
387-384ED
80 mmx 170 mmx 61.5 mm
389-384DRB
80 mmx 170 mmx 61.5 mm
EE132083-132126D
80 mmx 170 mmx 61.5 mm
42362D - 42586
80 mmx 170 mmx 61.5 mm
L357049-L357019-B
80 mmx 170 mmx 61.5 mm
