XinYouYa bearing supplies cam follower bearings in many different types and brands. We have a wide variety of these bearings in stock from well-renowned brands, such as SKF, INA, IKO etc. Cam followers are follower bearings for cam mechanisms and linear motions provided with high rigidity and high accuracy. They are, therefore, used widely for machine tools, industrial robots, electronics devices, and OA equipment.
Instead of an inner ring, cam followers have a solid stud (pin) that is threaded so that the cam follower can be quickly and easily attached to appropriate machine components by means of a hexagonal nut.
KR32-cam follower bearings
INA KR32 cam follower bearings, In stock, Dimensions: 12 mm x 32 mm x 40 mm, Basic dynamic load rating: 7.1 kN, Static load rating: 9.2 kN.
- Brand: INA
- Inside Diameter: 12 mm
- Outside Diameter: 32 mm
- Width: 40 mm
- Basic dynamic load rating: 7.1 kN
- Basic static load rating: 9.2 kN
KR35-cam follower bearings
INA KR35 cam follower bearings, In stock, Dimensions: 16 mm x 35 mm x 52 mm, Basic dynamic load rating: 9.7 kN, Static load rating: 14.3 kN.
- Brand: INA
- Inside Diameter: 16 mm
- Outside Diameter: 35 mm
- Width: 52 mm
- Basic dynamic load rating: 9.7 kN
- Basic static load rating: 14.3 kN
KR40-cam follower bearings
INA KR40 cam follower bearings, In stock, Dimensions: 18 mm x 40 mm x 58 mm, Basic dynamic load rating: 10.9 kN, Static load rating: 15.8 kN.
- Brand: INA
- Inside Diameter: 18 mm
- Outside Diameter: 40 mm
- Width: 58 mm
- Basic dynamic load rating: 10.9 kN
- Basic static load rating: 15.8 kN

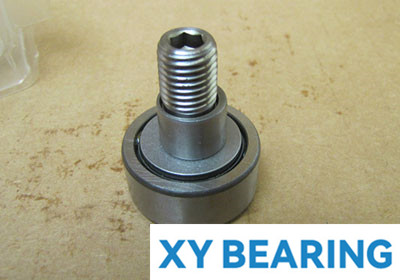

KRE16-PP-cam follower bearings
INA KRE16-PP cam follower bearings, In stock, Dimensions: 9 mm x 16 mm x 28 mm, Basic dynamic load rating: 3.15 kN, Static load rating: 3.35 kN.
- Brand: INA
- Inside Diameter: 9 mm
- Outside Diameter: 16 mm
- Width: 28 mm
- Basic dynamic load rating: 3.15 kN
- Basic static load rating: 3.35 kN

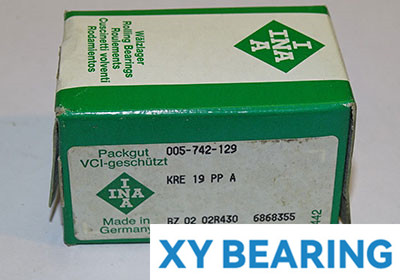

KRE19-PP-cam follower bearings
INA KRE19-PP cam follower bearings, In stock, Dimensions: 11 mm x 19 mm x 32 mm, Basic dynamic load rating: 3.5 kN, Static load rating: 4 kN.
- Brand: INA
- Inside Diameter: 11 mm
- Outside Diameter: 19 mm
- Width: 32 mm
- Basic dynamic load rating: 3.5 kN
- Basic static load rating: 4 kN
KRE22-PP-cam follower bearings
INA KRE22-PP cam follower bearings, In stock, Dimensions: 13 mm x 22 mm x 36 mm, Basic dynamic load rating: 4.55 kN, Static load rating: 5.3 kN.
- Brand: INA
- Inside Diameter: 13 mm
- Outside Diameter: 22 mm
- Width: 36 mm
- Basic dynamic load rating: 4.55 kN
- Basic static load rating: 5.3 kN
KRE26-PP-cam follower bearings
INA KRE26-PP cam follower bearings, In stock, Dimensions: 13 mm x 26 mm x 36 mm, Basic dynamic load rating: 5.1 kN, Static load rating: 6.4 kN.
- Brand: INA
- Inside Diameter: 13 mm
- Outside Diameter: 26 mm
- Width: 36 mm
- Basic dynamic load rating: 5.1 kN
- Basic static load rating: 6.4 kN

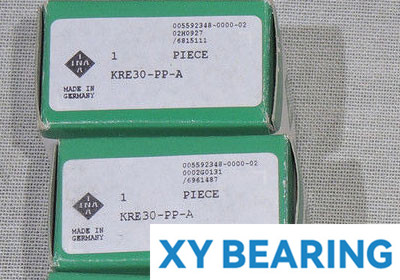

KRE30-PP-cam follower bearings
INA KRE30-PP cam follower bearings, In stock, Dimensions: 15 mm x 30 mm x 40 mm, Basic dynamic load rating: 6.8 kN, Static load rating: 8.6 kN.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 30 mm
- Width: 40 mm
- Basic dynamic load rating: 6.8 kN
- Basic static load rating: 8.6 kN

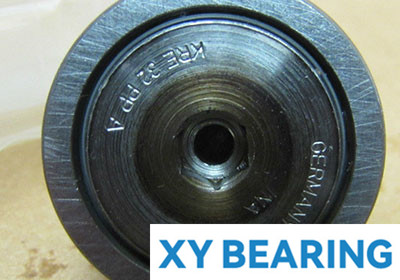

KRE32-PP-cam follower bearings
INA KRE32-PP cam follower bearings, In stock, Dimensions: 15 mm x 32 mm x 40 mm, Basic dynamic load rating: 7.1 kN, Static load rating: 9.2 kN.
- Brand: INA
- Inside Diameter: 15 mm
- Outside Diameter: 32 mm
- Width: 40 mm
- Basic dynamic load rating: 7.1 kN
- Basic static load rating: 9.2 kN

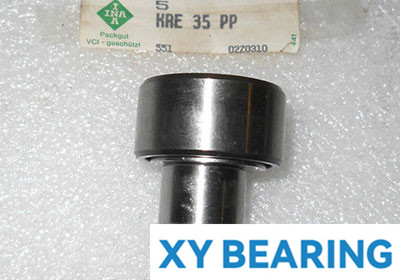

KRE35-PP-cam follower bearings
INA KRE35-PP cam follower bearings, In stock, Dimensions: 20 mm x 35 mm x 52 mm, Basic dynamic load rating: 9.7 kN, Static load rating: 14.3 kN.
- Brand: INA
- Inside Diameter: 20 mm
- Outside Diameter: 35 mm
- Width: 52 mm
- Basic dynamic load rating: 9.7 kN
- Basic static load rating: 14.3 kN
KRE40-PP-cam follower bearings
INA KRE40-PP cam follower bearings, In stock, Dimensions: 22 mm x 40 mm x 58 mm, Basic dynamic load rating: 10.9 kN, Static load rating: 15.8 kN.
- Brand: INA
- Inside Diameter: 22 mm
- Outside Diameter: 40 mm
- Width: 58 mm
- Basic dynamic load rating: 10.9 kN
- Basic static load rating: 15.8 kN
KRE47-PP-cam follower bearings
INA KRE47-PP cam follower bearings, In stock, Dimensions: 24 mm x 47 mm x 66 mm, Basic dynamic load rating: 15.4 kN, Static load rating: 26 kN.
- Brand: INA
- Inside Diameter: 24 mm
- Outside Diameter: 47 mm
- Width: 66 mm
- Basic dynamic load rating: 15.4 kN
- Basic static load rating: 26 kN
KRE52-PP-cam follower bearings
INA KRE52-PP cam follower bearings, In stock, Dimensions: 24 mm x 52 mm x 66 mm, Basic dynamic load rating: 16.6 kN, Static load rating: 29 kN.
- Brand: INA
- Inside Diameter: 24 mm
- Outside Diameter: 52 mm
- Width: 66 mm
- Basic dynamic load rating: 16.6 kN
- Basic static load rating: 29 kN
KRE62-PP-cam follower bearings
INA KRE62-PP cam follower bearings, In stock, Dimensions: 28 mm x 62 mm x 80 mm, Basic dynamic load rating: 26 kN, Static load rating: 48 kN.
- Brand: INA
- Inside Diameter: 28 mm
- Outside Diameter: 62 mm
- Width: 80 mm
- Basic dynamic load rating: 26 kN
- Basic static load rating: 48 kN
KRE72-PP-cam follower bearings
INA KRE72-PP cam follower bearings, In stock, Dimensions: 28 mm x 72 mm x 80 mm, Basic dynamic load rating: 28 kN, Static load rating: 53 kN.
- Brand: INA
- Inside Diameter: 28 mm
- Outside Diameter: 72 mm
- Width: 80 mm
- Basic dynamic load rating: 28 kN
- Basic static load rating: 53 kN
KRE80-PP-cam follower bearings
INA KRE80-PP cam follower bearings, In stock, Dimensions: 35 mm x 80 mm x 100 mm, Basic dynamic load rating: 38.5 kN, Static load rating: 77 kN.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 80 mm
- Width: 100 mm
- Basic dynamic load rating: 38.5 kN
- Basic static load rating: 77 kN
KRE90-PP-cam follower bearings
INA KRE90-PP cam follower bearings, In stock, Dimensions: 35 mm x 90 mm x 100 mm, Basic dynamic load rating: 40.5 kN, Static load rating: 83 kN.
- Brand: INA
- Inside Diameter: 35 mm
- Outside Diameter: 90 mm
- Width: 100 mm
- Basic dynamic load rating: 40.5 kN
- Basic static load rating: 83 kN

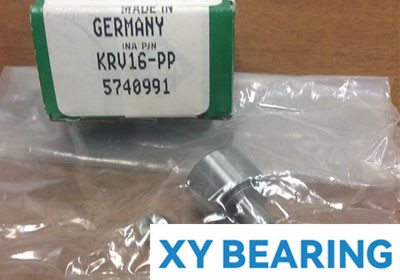

KRV16-PP-cam follower bearings
INA KRV16-PP cam follower bearings, In stock, Dimensions: 6 mm x 16 mm x 28 mm, Basic dynamic load rating: 4.9 kN, Static load rating: 6.6 kN.
- Brand: INA
- Inside Diameter: 6 mm
- Outside Diameter: 16 mm
- Width: 28 mm
- Basic dynamic load rating: 4.9 kN
- Basic static load rating: 6.6 kN

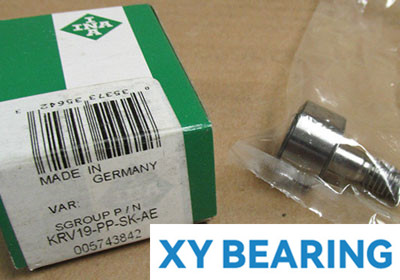

KRV19-PP-cam follower bearings
INA KRV19-PP cam follower bearings, In stock, Dimensions: 8 mm x 19 mm x 32 mm, Basic dynamic load rating: 5400 kN, Static load rating: 8000 kN.
- Brand: INA
- Inside Diameter: 8 mm
- Outside Diameter: 19 mm
- Width: 32 mm
- Basic dynamic load rating: 5400 kN
- Basic static load rating: 8000 kN

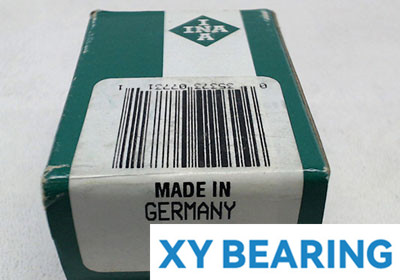

KRV22-PP-cam follower bearings
INA KRV22-PP cam follower bearings, In stock, Dimensions: 10 mm x 22 mm x 36 mm, Basic dynamic load rating: 6.2 kN, Static load rating: 9.2 kN.
- Brand: INA
- Inside Diameter: 10 mm
- Outside Diameter: 22 mm
- Width: 36 mm
- Basic dynamic load rating: 6.2 kN
- Basic static load rating: 9.2 kN
