SKF PBM506050M1G1 Bushings
Also known as : PBM506050M1G1
- Inside Diameter: 50 mm
- Outside Diameter: 60 mm
- Width: 50 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PBM506050M1G1
SKF PBM506050M1G1 details
| number | PBM506050M1G1 |
|---|---|
| Type | SKF solid bronze bushings |

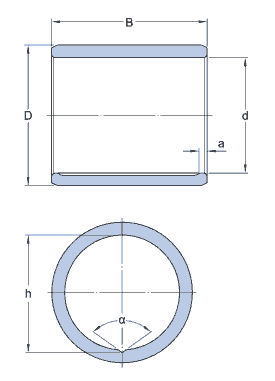

| Dimensions | |
| d | 50 mm |
| D | 60 mm |
| B | 50 mm |
| a | 3 mm |
| h | 51 mm |
| α | 124 ° |
| Recommended fits | |
| Tolerance shaft | e7 |
| Tolerance housing | H7 |
| Calculation data | |
| Specific dynamic load factor, K | 25 N/mm2 |
| Specific static load factor, K0 | 45 N/mm2 |
| Permissible sliding velocity, v, min. | 0 m/s |
| Permissible sliding velocity, v, max. | 0.5 m/s |
| Coefficient of friction, u, min. | 0.08 |
| Coefficient of friction, u, max. | 0.15 |
| Mass bushing | 0.38 kg |
