SKF PCM707570M Bushings

Also known as : PCM707570M

SKF PCM707570M

number	PCM707570M
Brand	SKF
Type	Bushings

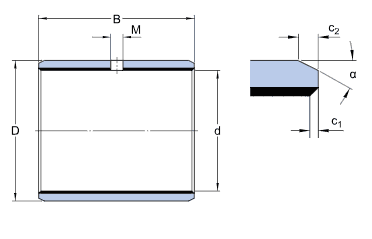

d	70 mm
D	75 mm
B	70 mm
M	6 mm
c_{1 min.}	0.2 mm
c_{1 max.}	1 mm
c_{2 min.}	1.2 mm
c_{2 max.}	2.4 mm
α ±8	20 °
Calculation data
Basic dynamic load rating - radial direction C	585 kN
Basic static load rating - radial direction C₀	1220 kN
Specific dynamic load factor K	120 N/mm²
Specific static load factor K₀	250 N/mm²
Factor depending on material and bearing type K_M	1900
Permissible sliding velocity v min.	0 m/s
Permissible sliding velocity v max.	2.5 m/s
Coefficient of friction µ min.	0.02
Coefficient of friction µ max.	0.2
Mass	0.28 kg
