SKF PCM505540E Bushings
Also known as : PCM505540E
- Inside Diameter: 50 mm
- Outside Diameter: 55 mm
- Width: 40 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 490 kN
SKF PCM505540E
SKF PCM505540E details
| number | PCM505540E |
|---|---|
| Brand | SKF |
| Type | Bushings |

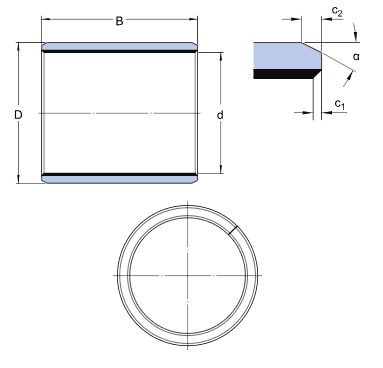

| d | 50 mm |
| D | 55 mm |
| B | 40 mm |
| c1 min. | 0.2 mm |
| c1 max. | 1 mm |
| c2 min. | 1.2 mm |
| c2 max. | 2.4 mm |
| α ±8 | 20 ° |
| Calculation data | |
| Basic dynamic load rating - radial direction C | 156 kN |
| Basic static load rating - radial direction C0 | 490 kN |
| Specific dynamic load factor K | 80 N/mm² |
| Specific static load factor K0 | 250 N/mm² |
| Factor depending on material and bearing type KM | 480 |
| Permissible sliding velocity v min. | 0 m/s |
| Permissible sliding velocity v max. | 2 m/s |
| Coefficient of friction µ min. | 0.03 |
| Coefficient of friction µ max. | 0.25 |
| Mass | 0.13 kg |
SKF PCM505540E bearing cross reference
PBM506050M1G1
50 mmx 55 mmx40 mm
PCMF121407E
50 mmx 55 mmx40 mm
PCM707570M
50 mmx 55 mmx40 mm
PCM10010550M
50 mmx 55 mmx40 mm
PCM606560M
50 mmx 55 mmx40 mm
PCM182025M
50 mmx 55 mmx40 mm
PCM606540M
50 mmx 55 mmx40 mm
PCM606570M
50 mmx 55 mmx40 mm
PCM556040E
50 mmx 55 mmx40 mm
PCM505540E
50 mmx 55 mmx40 mm

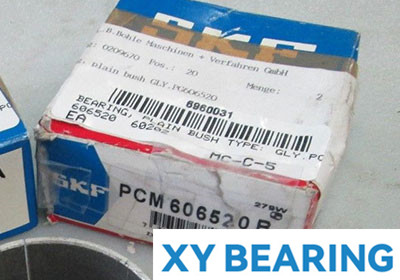

PCM606520E
50 mmx 55 mmx40 mm
