SKF PRM353930 Bushings
Also known as : PRM353930
- Inside Diameter: 35 mm
- Outside Diameter: 39 mm
- Width: 30 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
SKF PRM353930
SKF PRM353930 details
| number | PRM 353930 |
|---|---|
| Type | SKF wrapped bronze bushings |

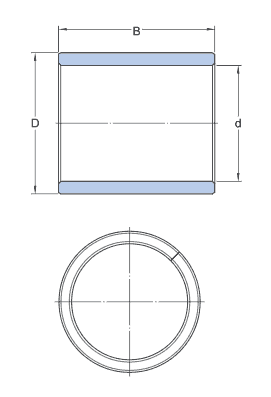

| Dimensions | |
| d | 35 mm |
| D | 39 mm |
| B | 30 mm |
| Recommended fits | |
| Tolerance shaft | f7 m/s |
| Tolerance housing | H7 m/s |
| Calculation data | |
| Specific dynamic load factor, K | 40 N/mm2 |
| Specific static load factor, K0 | 120 N/mm2 |
| Permissible sliding velocity, v, min. | 0 m/s |
| Permissible sliding velocity, v, max. | 1 m/s |
| Coefficient of friction, u, min. | 0.08 |
| Coefficient of friction, u, max. | 0.15 |
| Mass bushing | 0.0059 kg |
SKF PRM353930 bearing cross reference
PBM506050M1G1
35 mmx 39 mmx30 mm
PCMF121407E
35 mmx 39 mmx30 mm
PCM707570M
35 mmx 39 mmx30 mm
PCM10010550M
35 mmx 39 mmx30 mm
PCM606560M
35 mmx 39 mmx30 mm
PCM182025M
35 mmx 39 mmx30 mm
PCM606540M
35 mmx 39 mmx30 mm
PCM606570M
35 mmx 39 mmx30 mm
PCM556040E
35 mmx 39 mmx30 mm
PCM505540E
35 mmx 39 mmx30 mm
PCM606520E
35 mmx 39 mmx30 mm
