FAG 2307-2RS-TVH

FAG 2307-2RS-TVH Aligning ball bearing

Also known as : 2307-2RS-TVH

Inside Diameter: 35 mm
Outside Diameter: 80 mm
Width: 31 mm
Basic dynamic load rating: 25.5 kN
Basic static load rating: 7.8 kN

FAG 2307-2RS-TVH

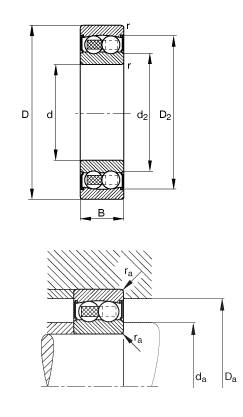

FAG 2307-2RS-TVH details

d	35 mm
D	80 mm
B	31 mm
D₂	68,4 mm
D_{a max}	71 mm
d₂	44,9 mm
d_{a min}	44 mm
r_{a max}	1,5 mm
r_min	1,5 mm
m	0,744 kg	Mass
C_r	25500 N	Basic dynamic load rating, radial
C_0r	7800 N	Basic static load rating, radial
e	0,26
Y₁	2,47
Y₂	3,82
Y₀	2,59
n_G	5200 1/min	Limiting speed
C_ur	485 N	Fatigue limit load, radial

FAG 2307-2RS-TVH bearing cross reference

11212-TVH
35 mmx 80 mmx 31 mm

11211-TVH
35 mmx 80 mmx 31 mm

11210-TVH
35 mmx 80 mmx 31 mm

11209-TVH
35 mmx 80 mmx 31 mm

11207-TVH
35 mmx 80 mmx 31 mm

11206-TVH
35 mmx 80 mmx 31 mm

11205-TVH
35 mmx 80 mmx 31 mm

11204-TVH
35 mmx 80 mmx 31 mm

2311-2RS-TVH
35 mmx 80 mmx 31 mm

2310-2RS-TVH
35 mmx 80 mmx 31 mm

2309-2RS-TVH
35 mmx 80 mmx 31 mm

2308-2RS-TVH
35 mmx 80 mmx 31 mm
