FAG 2318-K-M-C3 Aligning ball bearing
Also known as : 2318-K-M-C3
- Inside Diameter: 90 mm
- Outside Diameter: 190 mm
- Width: 64 mm
- Basic dynamic load rating: 156 kN
- Basic static load rating: 57 kN
FAG 2318-K-M-C3
FAG 2318-K-M-C3 details

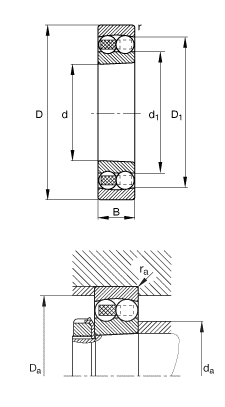

| d | 90 mm | |
|---|---|---|
| D | 190 mm | |
| B | 64 mm | |
| D1 | 159,8 mm | |
| Da max | 176 mm | |
| d1 | 115,7 mm | |
| da max | 112 mm | |
| da min | 104 mm | |
| ra max | 2,5 mm | |
| rmin | 3 mm | |
| m | 8,38 kg | Mass |
| Cr | 156000 N | Basic dynamic load rating, radial |
| C0r | 57000 N | Basic static load rating, radial |
| e | 0,39 | |
| Y1 | 1,63 | |
| Y2 | 2,53 | |
| Y0 | 1,71 | |
| nG | 5100 1/min | Limiting speed |
| nB | 5000 1/min | Reference speed |
| Cur | 3000 N | Fatigue limit load, radial |
| H2318 | Designation, adapter sleeve |
