FAG 2206-TVH

FAG 2206-TVH Aligning ball bearing

Also known as : 2206-TVH

Inside Diameter: 30 mm
Outside Diameter: 62 mm
Width: 20 mm
Basic dynamic load rating: 26 kN
Basic static load rating: 6.9 kN

FAG 2206-TVH

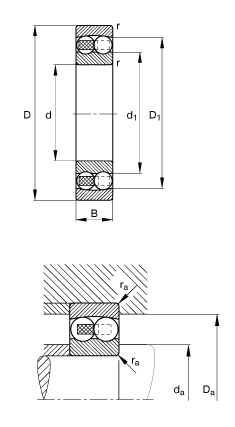

FAG 2206-TVH details

d	30 mm
D	62 mm
B	20 mm
D₁	53,7 mm
D_{a max}	56,4 mm
d₁	38,5 mm
d_{a min}	35,6 mm
r_{a max}	1 mm
r_min	1 mm
m	0,252 kg	Mass
C_r	26000 N	Basic dynamic load rating, radial
C_0r	6900 N	Basic static load rating, radial
e	0,3
Y₁	2,13
Y₂	3,29
Y₀	2,23
n_G	11500 1/min	Limiting speed
n_B	11400 1/min	Reference speed
C_ur	425 N	Fatigue limit load, radial

FAG 2206-TVH bearing cross reference

11212-TVH
30 mmx 62 mmx 20 mm

11211-TVH
30 mmx 62 mmx 20 mm

11210-TVH
30 mmx 62 mmx 20 mm

11209-TVH
30 mmx 62 mmx 20 mm

11207-TVH
30 mmx 62 mmx 20 mm

11206-TVH
30 mmx 62 mmx 20 mm

11205-TVH
30 mmx 62 mmx 20 mm

11204-TVH
30 mmx 62 mmx 20 mm

2311-2RS-TVH
30 mmx 62 mmx 20 mm

2310-2RS-TVH
30 mmx 62 mmx 20 mm

2309-2RS-TVH
30 mmx 62 mmx 20 mm

2308-2RS-TVH
30 mmx 62 mmx 20 mm
