SKF 2209EKTN9 Aligning ball bearing
Also known as : 2209EKTN9, 2209K
- Inside Diameter: 45 mm
- Outside Diameter: 85 mm
- Width: 23 mm
- Basic dynamic load rating: 32.5 kN
- Basic static load rating: 10.6 kN
SKF 2209EKTN9
SKF 2209EKTN9 details

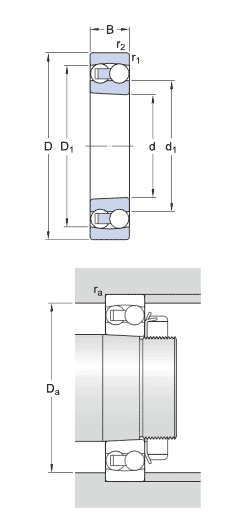

| model | 2209EKTN9 |
|---|---|
| d | 45 mm |
| D | 85 mm |
| B | 23 mm |
| d1 | 55.32 mm |
| D1 | 73.2 mm |
| r1,2 min. | 1.1 mm |
| Tapered bore, taper 1:12 | |
| da max | 78 mm |
| ra max | 1.1 mm |
| C | 32.5 kN, Basic dynamic load rating |
| C0 | 10.6 kN, Basic static load rating |
| Pu | 0.54 kN, Fatigue load limit |
| Reference speed | 15000 r/min |
| Limiting speed | 10000 r/min |
| α | 2.5°, Permissible angular misalignment |
| kr | 0.045, Calculation factor |
| e | 0.26, Calculation factor |
| Y0 | 2.5, Calculation factor |
| Y1 | 2.4, Calculation factor |
| Y2 | 3.7, Calculation factor |
| Mass | 0.55 kg |
