SKF 2211E-2RS1TN9 Aligning ball bearing
Also known as : 2211E-2RS1TN9, 2211-2RS-TVH
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 25 mm
- Basic dynamic load rating: 27.6 kN
- Basic static load rating: 10.6 kN
SKF 2211E-2RS1TN9

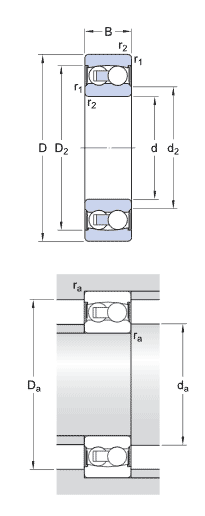

SKF 2211E-2RS1TN9 details
| model | 2211E-2RS1TN9 |
|---|---|
| d | 55 mm |
| D | 100 mm |
| B | 25 mm |
| d2 | 65.9 mm |
| D2 | 88.5 mm |
| r1,2 min. | 1.5 mm |
| da min | 64 mm |
| da max | 65.5 mm |
| Da max | 91 mm |
| ra max | 1.5 mm |
| C | 27.6 kN, Basic dynamic load rating |
| C0 | 10.6 kN, Basic static load rating |
| Pu | 0.54 kN, Fatigue load limit |
| Limiting speed | 4300 r/min |
| α | 1.5°, Permissible angular misalignment |
| kr | 0.045, Calculation factor |
| e | 0.19, Calculation factor |
| Y0 | 3.6, Calculation factor |
| Y1 | 3.3, Calculation factor |
| Y2 | 5.1, Calculation factor |
| Mass | 0.79 kg |
SKF 2211E-2RS1TN9 bearing cross reference
11212-TVH
55 mmx 100 mmx 25 mm
11211-TVH
55 mmx 100 mmx 25 mm
11210-TVH
55 mmx 100 mmx 25 mm
11209-TVH
55 mmx 100 mmx 25 mm
11207-TVH
55 mmx 100 mmx 25 mm
11206-TVH
55 mmx 100 mmx 25 mm
11205-TVH
55 mmx 100 mmx 25 mm
11204-TVH
55 mmx 100 mmx 25 mm
2311-2RS-TVH
55 mmx 100 mmx 25 mm
2310-2RS-TVH
55 mmx 100 mmx 25 mm
2309-2RS-TVH
55 mmx 100 mmx 25 mm
