FAG 2214-M

FAG 2214-M Aligning ball bearing

Also known as : 2214-M

Inside Diameter: 70 mm
Outside Diameter: 125 mm
Width: 31 mm
Basic dynamic load rating: 44 kN
Basic static load rating: 16.9 kN

FAG 2214-M

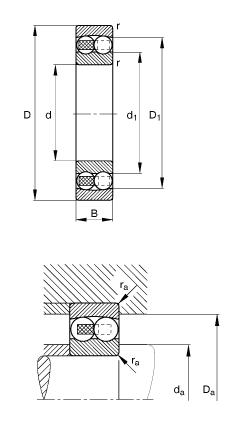

FAG 2214-M details

d	70 mm
D	125 mm
B	31 mm
D₁	108,9 mm
D_{a max}	116 mm
d₁	87,6 mm
d_{a min}	79 mm
r_{a max}	1,5 mm
r_min	1,5 mm
m	1,69 kg	Mass
C_r	44000 N	Basic dynamic load rating, radial
C_0r	16900 N	Basic static load rating, radial
e	0,27
Y₁	2,34
Y₂	3,62
Y₀	2,45
n_G	8800 1/min	Limiting speed
n_B	5900 1/min	Reference speed
C_ur	1050 N	Fatigue limit load, radial

FAG 2214-M bearing cross reference

11212-TVH
70 mmx 125 mmx 31 mm

11211-TVH
70 mmx 125 mmx 31 mm

11210-TVH
70 mmx 125 mmx 31 mm

11209-TVH
70 mmx 125 mmx 31 mm

11207-TVH
70 mmx 125 mmx 31 mm

11206-TVH
70 mmx 125 mmx 31 mm

11205-TVH
70 mmx 125 mmx 31 mm

11204-TVH
70 mmx 125 mmx 31 mm

2311-2RS-TVH
70 mmx 125 mmx 31 mm

2310-2RS-TVH
70 mmx 125 mmx 31 mm

2309-2RS-TVH
70 mmx 125 mmx 31 mm

2308-2RS-TVH
70 mmx 125 mmx 31 mm
